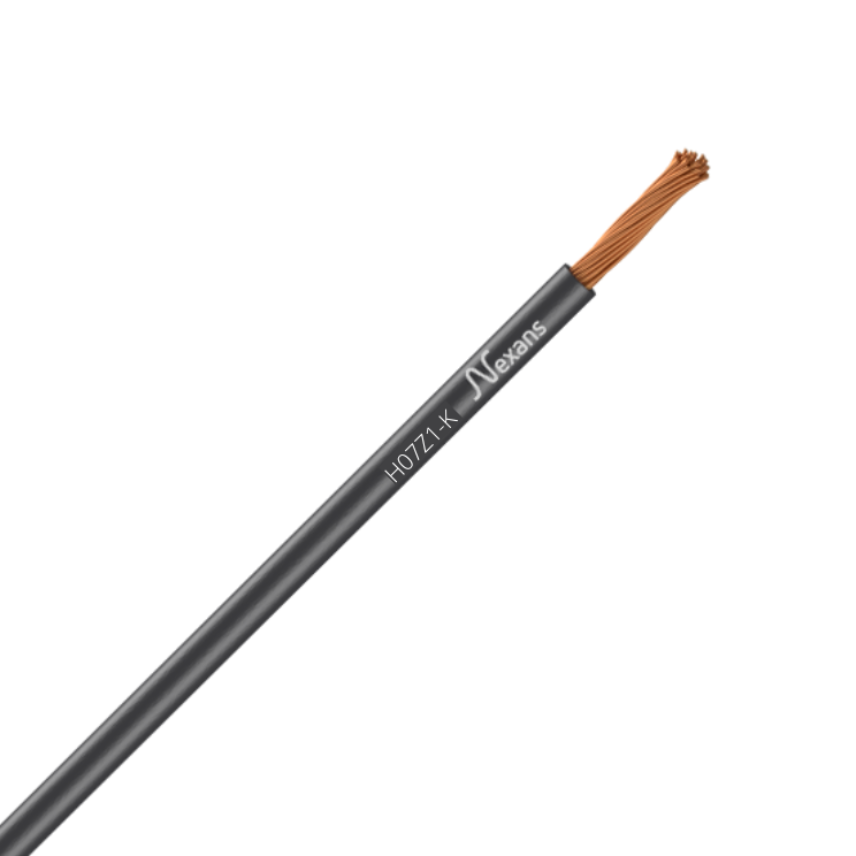

ALSECURE® H07Z1-K (AS), 1x35 mm², negro
ALSECURE® H07Z1-K (AS), 1x35 mm², negro
Cable de alta seguridad libre de halógenos, para cableado de cuadros eléctricos e instalaciones en locales de pública concurrencia.
Lee más- Nexans ref. : 10097990
- País de referencia : 336
Descripción
Descripción
Estándares
-
ProductoEN 50525-3-31; EN 50575; IEC 60228; UNE 21022; UNE 211002
-
EnsayoEN 50266-2-4; EN 50267-2-2; IEC 60332-1; IEC 60332-3-24; IEC 61034-2; NF C32-070/C2; UNE EN 50267-2-3 ; UNE-EN 50265-2-1
Application
Flexible insulated conductors Nexans H07Z1-K are used for fixed secured protected installation.
Halogen free, fire retardant with low emission of smoke, Nexans H07Z1-K may be used in public buildings or areas where fire safety is concerned
Installation
Nexans H07Z1-K can be installed in open air, in conduit, in cable ducting, in switch cabinets.
Thanks to the sliding properties of the insulation, installation is made easier while pulling in...
Encuentra este producto en EASYCALC™
Nuevo embalaje en cartón para Nexans H07V-K y ALSECURE H07Z1-K
Código de colores para identificar la sección del cable
Colores de cables disponibles
-
-
Características
Características
Características de construcción
Características de construcción
Aislamiento
Sin halógeno, TI 7 según EN 50363-7
Flexibilidad del conductor
Flexible, Clase 5
Material del conductor
Cobre desnudo
Libre de plomo
Sí
Libre de halógenos
Sí
Con conductor amarillo/verde
No
Con neutro de sección reducida
No
Forma del conductor
Circular
Insulation colour
Negro
Características dimensionales
Características dimensionales
Sección del conductor
35 mm²
Diámetro exterior
- mm
Neutral conductor section (when smaller)
- mm²
Número de conductores
1
Peso aproximado
35 kg/km
Características eléctricas
Características eléctricas
Tensión nominal de servicio Uo/U
450/750 V
Intensidad admisible al aire libre
- A
Maximum operating voltage
750 V
Resistencia máxima del conductor en CC a 20º C
- Ohm/km
Test voltage
2500 V
Características mecánicas
Características mecánicas
Flexibilidad del cable
Flexible
Resistencia mecánica a impactos
Baja
Características de uso
Características de uso
Temperatura máxima del conductor
70 °C
No propagador del incendio
EN IEC 60332-3-24 (cat C)
No propagación de la llama
UNE-EN 50265-2-1
Densidad de los humos
EN 50268-2
Embalaje
Rollos
Estanqueidad
Limited
Resistencia a la intemperie
Restricted, not ozon stable
Resistencia química
Restricted to oil, acid & base
Temperatura máxima operativa
70 °C
Recursos
Recursos
Documentación
H07Z1-K PEP
pdf — 5.0 MB
Licencia USE H07Z1-K
pdf — 1.1 MB
Brochure Nexans H07Z1-K
pdf — 2.1 MB
CMC H07Z1-K
pdf — 778.9 kB
Current capacity table PVC insulation multicore three phase
| Sección del conductor | A2 - Multi-core cable in conduit in a thermally insulated wall | B2 - Multi-core cable in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | E - Multi-core cable in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Sección del conductor 35.0 |
A2 - Multi-core cable in conduit in a thermally insulated wall
83.0 |
B2 - Multi-core cable in conduit on a wooden wall
65.0 |
C - Single-core or multi-core cable on a wooden wall
99.0 |
D1 - Single-core or Multi-core cable in ducts in the ground
77.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
119.0 |
E - Multi-core cable in free air
90.0 |
mm² 98.0 |
Cu 77.0 |
Al 110.0 |
Cu 83.0 |
Al 126.0 |
Cu 96.0 |
Current capacity table PVC insulation multicore single phase
| Sección del conductor | A2 - Multi-core cable in conduit in a thermally insulated wall | B2 - Multi-core cable in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | E - Multi-core cable in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Sección del conductor 35.0 |
A2 - Multi-core cable in conduit in a thermally insulated wall
92.0 |
B2 - Multi-core cable in conduit on a wooden wall
71.0 |
C - Single-core or multi-core cable on a wooden wall
111.0 |
D1 - Single-core or Multi-core cable in ducts in the ground
86.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
138.0 |
E - Multi-core cable in free air
103.0 |
mm² 119.0 |
Cu 93.0 |
Al 132.0 |
Cu 98.0 |
Al 148.0 |
Cu 111.0 |
Current capacity table PVC insulation single core three phase
| Sección del conductor | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | Ft - Single-core trefoil cables, touching in free air | G - Single-core horizontal spaced | Gv - Single-core flat vertical spaced | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Sección del conductor 35.0 |
A1 - Insulated conductors in conduit in a thermally insulated wall
89.0 |
B1 - Insulated conductors in conduit on a wooden wall
70.0 |
C - Single-core or multi-core cable on a wooden wall
110.0 |
D1 - Single-core or Multi-core cable in ducts in the ground
86.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
119.0 |
F - Single-core flat cables, touching in free air
90.0 |
Ft - Single-core trefoil cables, touching in free air
98.0 |
G - Single-core horizontal spaced
77.0 |
Gv - Single-core flat vertical spaced
110.0 |
mm² 83.0 |
Cu 143.0 |
Al 109.0 |
Cu 137.0 |
Al 181.0 |
Cu 105.0 |
Al 139.0 |
Cu 162.0 |
Al 124.0 |
Current capacity table PVC insulation single core single phase
| Sección del conductor | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Sección del conductor 35.0 |
A1 - Insulated conductors in conduit in a thermally insulated wall
99.0 |
B1 - Insulated conductors in conduit on a wooden wall
77.0 |
C - Single-core or multi-core cable on a wooden wall
125.0 |
D1 - Single-core or Multi-core cable in ducts in the ground
97.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
138.0 |
F - Single-core flat cables, touching in free air
103.0 |
mm² 119.0 |
Cu 93.0 |
Al 132.0 |
Cu 98.0 |
Al 162.0 |
Cu 122.0 |
Selling & delivery Information
Ink jet marking
USE - HAR- ALSECURE H07Z1-K (AS) TYPE 2 AENOR PLANT N° NEXANS – DAY YEAR
