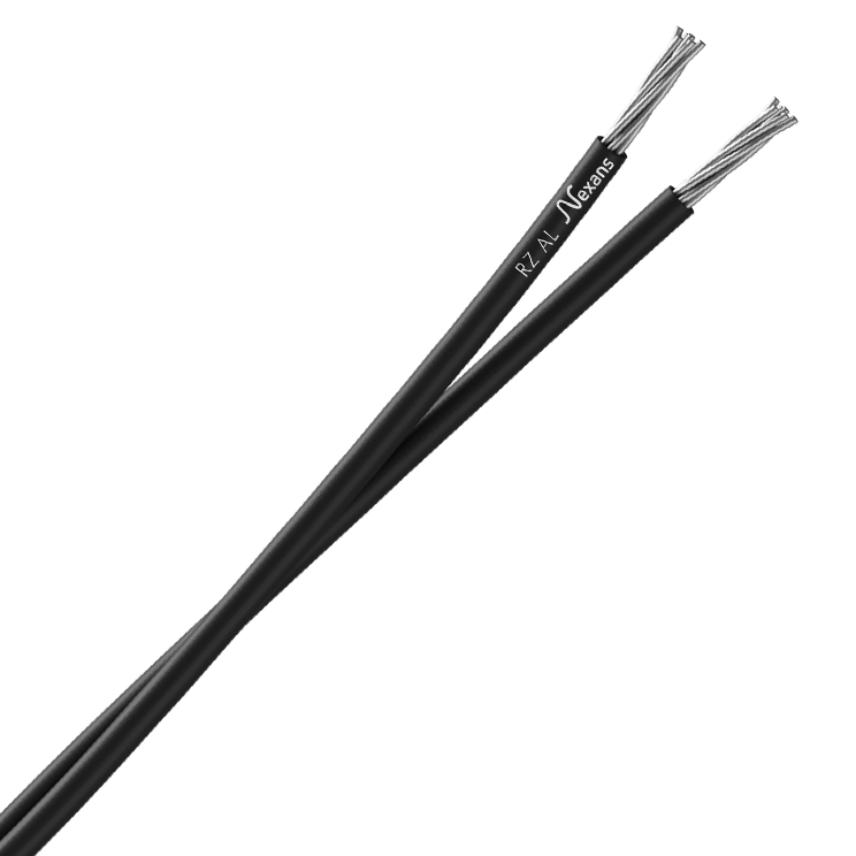

RZ Aluminio, 2x16 mm²
Environmental data
RZ Aluminio, 2x16 mm²
Cable trenzado de aluminio, para redes aéreas.
Lee más- Nexans ref. : 10057559
- EAN : 3427670003457
Descripción
Descripción
Estándares
-
ProductoIEC 60502; UNE 21123; UNE 21123
-
EnsayoEN 50265
Application
RZ aluminum cables can be used in all the low power installations dedicated to the rural and public feeding.
Installation
These cables are for air transport, or fixed to walls. They should never be buried.
Core colours
- 2 cores = Black
- 3 cores = Black
- 4 cores = Black
Características
Características
Características de construcción
Características de construcción
Características dimensionales
Características dimensionales
Características eléctricas
Características eléctricas
Características de uso
Características de uso
Recursos
Recursos
Documentación
Selling & delivery Information
Marking
N x S mm² RZ AL - Year Fab. - N° Plant
- N = number of cores
- S = section in mm²
- x = without Green-Yellow
RZ Aluminio, 2x16 mm²
Nexans ref. : 10057559
EAN : 3427670003457
PEP : NXNS-00215-V01.01
This product is part of the low carbon range of Nexans : a selection of products ensuring the reduction of the carbon footprint and subject to rigourous ecodesign criteria.
Nexans Low Carbon Selection Criteria: minimum integration of 10% recycled copper or aluminum and/or 100% low-carbon aluminum sourcing.
Lee más Lee menos- Amount of CO2 emitted Cradle to Gate phase (raw material collection and manufacturing), for the production of 1 km of cable.
- 7.3t CO2 / t represents the European average (International Aluminium Institute 2019).
- The product reference value is calculated based on the final average value of aluminium. The reductions achieved are linked to the use of carbon-free energy sources.
