Nexans H07V-K Easybox 1G1.5 Green-Yellow 200m
Nexans ref. 10286782
- Packaging: Pallet (24000m)
- Sheath colour: Green / Yellow
- With Green/Yellow core: Yes
- Approximate weight: 20 kg/km
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 3.5 mm
- Permissible current rating when buried: 12 A
Nexans H07V-K Easybox 1G2.5 Green-Yellow 200m
Nexans ref. 10286798
- Packaging: Pallet (14400m)
- Sheath colour: Green / Yellow
- With Green/Yellow core: Yes
- Approximate weight: 30 kg/km
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 4.2 mm
- Permissible current rating when buried: 17 A
Nexans H07V-K Easybox 1G4 Green-Yellow 100m
Nexans ref. 10286803
- Packaging: Pallet (12000m)
- Sheath colour: Green / Yellow
- With Green/Yellow core: Yes
- Approximate weight: 45 kg/km
- Conductor cross-section: 4 mm²
- Outer Diameter: 4.8 mm
- Permissible current rating when buried: 23 A
Nexans H07V-K Easybox 1G6 Green-Yellow 100m
Nexans ref. 10286806
- Packaging: Pallet (7200m)
- Sheath colour: Green / Yellow
- With Green/Yellow core: Yes
- Approximate weight: 65 kg/km
- Conductor cross-section: 6 mm²
- Outer Diameter: 6.3 mm
- Permissible current rating when buried: 29 A
Nexans H07V-K Easybox 1x1.5 Black 200m
Nexans ref. 10286783
- Packaging: Pallet (24000m)
- Sheath colour: Black
- With Green/Yellow core: No
- Approximate weight: 20 kg/km
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 3.5 mm
- Permissible current rating when buried: 12 A
Nexans H07V-K Easybox 1x1.5 Blue 200m
Nexans ref. 10286794
- Packaging: Pallet (24000m)
- Sheath colour: Blue
- With Green/Yellow core: No
- Approximate weight: 20 kg/km
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 3.5 mm
- Permissible current rating when buried: 12 A
Nexans H07V-K Easybox 1x1.5 Brown 200m
Nexans ref. 10286795
- Packaging: Pallet (24000m)
- Sheath colour: Brown
- With Green/Yellow core: No
- Approximate weight: 20 kg/km
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 3.5 mm
- Permissible current rating when buried: 12 A
Nexans H07V-K Easybox 1x1.5 Grey 200m
Nexans ref. 10286797
- Packaging: Pallet (24000m)
- Sheath colour: Grey
- With Green/Yellow core: No
- Approximate weight: 20 kg/km
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 3.5 mm
- Permissible current rating when buried: 12 A
Nexans H07V-K Easybox 1x1.5 White 200m
Nexans ref. 10286796
- Packaging: Pallet (24000m)
- Sheath colour: White
- With Green/Yellow core: No
- Approximate weight: 20 kg/km
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 3.5 mm
- Permissible current rating when buried: 12 A
Nexans H07V-K Easybox 1x2.5 Black 200m
Nexans ref. 10286799
- Packaging: Pallet (14400m)
- Sheath colour: Black
- With Green/Yellow core: No
- Approximate weight: 30 kg/km
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 4.2 mm
- Permissible current rating when buried: 17 A
Nexans H07V-K Easybox 1x2.5 Blue 200m
Nexans ref. 10286800
- Packaging: Pallet (14400m)
- Sheath colour: Blue
- With Green/Yellow core: No
- Approximate weight: 30 kg/km
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 4.2 mm
- Permissible current rating when buried: 17 A
Nexans H07V-K Easybox 1x2.5 Brown 200m
Nexans ref. 10286801
- Packaging: Pallet (14400m)
- Sheath colour: Brown
- With Green/Yellow core: No
- Approximate weight: 30 kg/km
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 4.2 mm
- Permissible current rating when buried: 17 A
Nexans H07V-K Easybox 1x2.5 Grey 200m
Nexans ref. 10286802
- Packaging: Pallet (14400m)
- Sheath colour: Grey
- With Green/Yellow core: No
- Approximate weight: 30 kg/km
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 4.2 mm
- Permissible current rating when buried: 17 A
Nexans H07V-K Easybox 1x4 Black 100m
Nexans ref. 10286804
- Packaging: Pallet (12000m)
- Sheath colour: Black
- With Green/Yellow core: No
- Approximate weight: 45 kg/km
- Conductor cross-section: 4 mm²
- Outer Diameter: 4.8 mm
- Permissible current rating when buried: 23 A
Nexans H07V-K Easybox 1x4 Blue 100m
Nexans ref. 10286805
- Packaging: Pallet (12000m)
- Sheath colour: Blue
- With Green/Yellow core: No
- Approximate weight: 45 kg/km
- Conductor cross-section: 4 mm²
- Outer Diameter: 4.8 mm
- Permissible current rating when buried: 23 A
Nexans H07V-K Easybox 1x6 Black 100m
Nexans ref. 10286807
- Packaging: Pallet (7200m)
- Sheath colour: Black
- With Green/Yellow core: No
- Approximate weight: 65 kg/km
- Conductor cross-section: 6 mm²
- Outer Diameter: 6.3 mm
- Permissible current rating when buried: 29 A
Nexans H07V-K Easybox 1x6 Blue 100m
Nexans ref. 10286808
- Packaging: Pallet (7200m)
- Sheath colour: Blue
- With Green/Yellow core: No
- Approximate weight: 65 kg/km
- Conductor cross-section: 6 mm²
- Outer Diameter: 6.3 mm
- Permissible current rating when buried: 29 A
Nexans H07V-K Easybox 1x6 Grey 100m
Nexans ref. 10286810
- Packaging: Pallet (7200m)
- Sheath colour: Grey
- With Green/Yellow core: No
- Approximate weight: 65 kg/km
- Conductor cross-section: 6 mm²
- Outer Diameter: 6.3 mm
- Permissible current rating when buried: 29 A
Nexans H07V-K Easybox 1x6Brown 100m
Nexans ref. 10286809
- Packaging: Pallet (7200m)
- Sheath colour: Brown
- With Green/Yellow core: No
- Approximate weight: 65 kg/km
- Conductor cross-section: 6 mm²
- Outer Diameter: 6.3 mm
- Permissible current rating when buried: 29 A
Description
Description
Standards
-
ProductEN 50525-2-31; UNE 21022; UNE 21031-3
Application
The H07V-K cable is a single-pole flexible copper cable (class 5) with insulation for fixed installations or in closed analog systems. It is also suitable for protected installations, lighting and switchgear. The cable is installed in conduit, in dry areas. It is often used for industrial and commercial electrical installations.
The H07V-K cable has a class 5 flexible copper conductor, which offers good electrical conductivity, with cross-sections from 1.5 mm² to 35 mm².
The conductor of the H07V-K cable is insulated with a shock and abrasion resistant PVC sheath, which protects against the effects of vibrations and mechanical movements.
Installation
The rated voltage of the H07V-K cable is 450/750 V, which makes it suitable for a wide range of domestic and industrial applications.
H07V-K cable is commonly used to supply electrical equipment such as heaters, lighting systems, power distribution cabinets, power generation and transformation equipment, air-conditioning installations, etc.
The H07V-K cable complies with international standards HD 21.3, EN 50525-2-31 and IEC 60227-2, ensuring its safety and reliability in electrical installations complying with these standards.
Thanks to its flexibility and sliding properties of the insulation, the installation of the cable is made easier and it is very suitable for installations with complex layouts.
Marking
SY+ USE < HAR > H07V-K Plant n°
Nexans H07V-K Easybox: Nueva solución en cartón del cable H07V-K para las secciones 1.5, 2.5, 4 y 6 mm².
Nexans EasyCalc

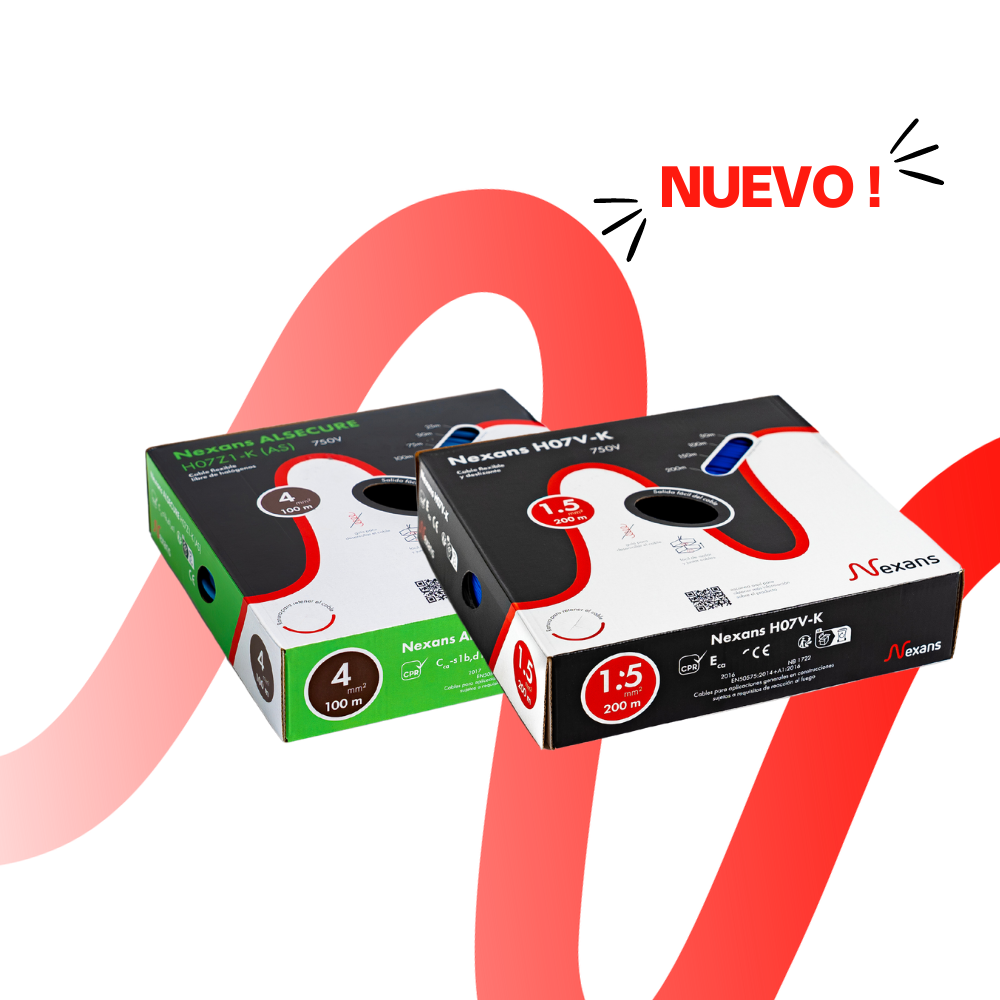

New cardboard solution, Nexans H07V-K Easybox

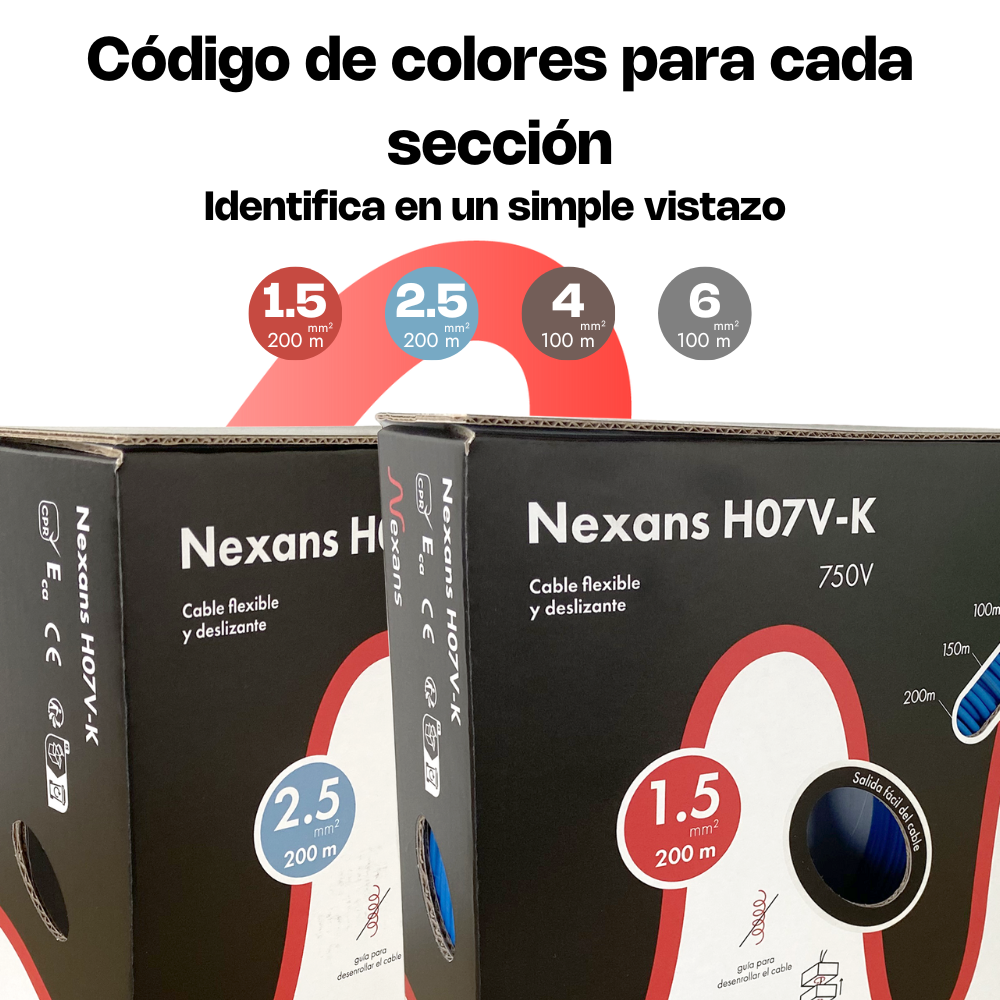

Colour code for new Nexans H07V-K Easybox

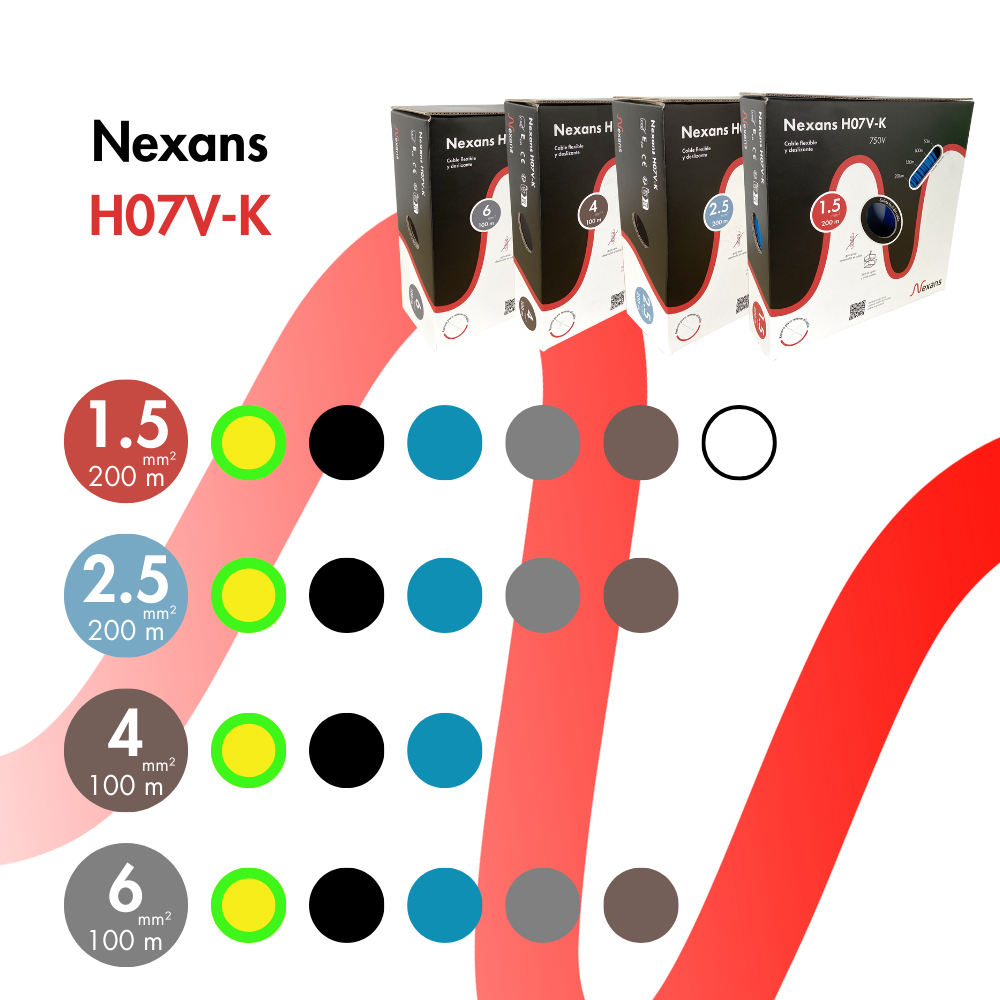

Cable colors available
-
-
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Insulation
PVC
Lead free
Yes
Conductor shape
Circular
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Neutral conductor section (when smaller)
- mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Max. DC resistance of the conductor at 20°C
- Ohm/km
Permissible current rating in open air
- A
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Flexible
Mechanical resistance to impacts
Low
Usage characteristics
Usage characteristics
Chemical resistance
Accidental
Flame retardant
EN 50265-2-1
Max. conductor temperature in service
70 °C
Oil resistance
Yes
Packaging
Pallet
Short-circuit max. conductor temperature
160 °C
Water proof
Accidental
Weather resistance
Good
Resources
Resources
Documentation
Certification d'homologation (pdf)
pdf — 213.3 kB
licence H07V-K
pdf — 64.2 kB
PEP H07V-K
pdf — 4.3 MB
DoP H07V-K ESP
pdf — 285.4 kB
Brochure Nexans H07V-K
pdf — 2.1 MB
CMC H07V-K
pdf — 758.2 kB
Current capacity table PVC insulation single core three phase
| Conductor cross-section | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | Ft - Single-core trefoil cables, touching in free air | G - Single-core horizontal spaced | Gv - Single-core flat vertical spaced | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 13.5 | 0.0 | 15.5 | 0.0 | 17.5 | 0.0 | 18.0 | 0.0 | 19.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 2.5 | 18.0 | 14.0 | 21.0 | 16.5 | 24.0 | 18.5 | 24.0 | 18.5 | 24.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 4.0 | 24.0 | 18.5 | 28.0 | 22.0 | 32.0 | 25.0 | 30.0 | 24.0 | 33.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 6.0 | 31.0 | 24.0 | 36.0 | 28.0 | 41.0 | 32.0 | 38.0 | 30.0 | 41.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 10.0 | 42.0 | 32.0 | 50.0 | 39.0 | 57.0 | 44.0 | 50.0 | 39.0 | 54.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 16.0 | 56.0 | 43.0 | 68.0 | 53.0 | 76.0 | 59.0 | 64.0 | 50.0 | 70.0 | 53.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 25.0 | 73.0 | 57.0 | 89.0 | 70.0 | 96.0 | 73.0 | 82.0 | 64.0 | 92.0 | 69.0 | 114.0 | 87.0 | 110.0 | 146.0 | 84.0 | 112.0 | 130.0 | 99.0 |
| 35.0 | 89.0 | 70.0 | 110.0 | 86.0 | 119.0 | 90.0 | 98.0 | 77.0 | 110.0 | 83.0 | 143.0 | 109.0 | 137.0 | 181.0 | 105.0 | 139.0 | 162.0 | 124.0 |
| 50.0 | 106.0 | 84.0 | 134.0 | 104.0 | 144.0 | 110.0 | 116.0 | 91.0 | 130.0 | 99.0 | 174.0 | 133.0 | 167.0 | 219.0 | 128.0 | 169.0 | 197.0 | 152.0 |
| 70.0 | 138.0 | 107.0 | 171.0 | 133.0 | 184.0 | 140.0 | 143.0 | 112.0 | 162.0 | 122.0 | 225.0 | 173.0 | 216.0 | 281.0 | 166.0 | 217.0 | 254.0 | 196.0 |
| 95.0 | 164.0 | 129.0 | 207.0 | 161.0 | 223.0 | 170.0 | 169.0 | 132.0 | 193.0 | 148.0 | 275.0 | 212.0 | 264.0 | 341.0 | 203.0 | 265.0 | 311.0 | 241.0 |
| 120.0 | 188.0 | 149.0 | 239.0 | 186.0 | 259.0 | 197.0 | 192.0 | 150.0 | 220.0 | 169.0 | 321.0 | 247.0 | 308.0 | 396.0 | 237.0 | 308.0 | 362.0 | 282.0 |
| 150.0 | 216.0 | 170.0 | 262.0 | 204.0 | 299.0 | 227.0 | 217.0 | 169.0 | 246.0 | 189.0 | 372.0 | 287.0 | 356.0 | 456.0 | 274.0 | 356.0 | 419.0 | 327.0 |
| 185.0 | 245.0 | 194.0 | 296.0 | 230.0 | 341.0 | 259.0 | 243.0 | 190.0 | 278.0 | 214.0 | 427.0 | 330.0 | 409.0 | 521.0 | 315.0 | 407.0 | 480.0 | 376.0 |
| 240.0 | 286.0 | 227.0 | 346.0 | 269.0 | 403.0 | 305.0 | 280.0 | 218.0 | 320.0 | 250.0 | 507.0 | 392.0 | 485.0 | 615.0 | 375.0 | 482.0 | 569.0 | 447.0 |
| 300.0 | 328.0 | 261.0 | 394.0 | 306.0 | 464.0 | 351.0 | 316.0 | 247.0 | 359.0 | 282.0 | 587.0 | 455.0 | 561.0 | 709.0 | 434.0 | 557.0 | 659.0 | 519.0 |
Current capacity table PVC insulation single core single phase
| Conductor cross-section | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 14.5 | 0.0 | 17.5 | 0.0 | 19.5 | 0.0 | 22.0 | 0.0 | 22.0 | 0.0 | 0.0 | 0.0 |
| 2.5 | 19.5 | 15.0 | 24.0 | 18.5 | 27.0 | 21.0 | 29.0 | 22.0 | 28.0 | 0.0 | 0.0 | 0.0 |
| 4.0 | 26.0 | 20.0 | 32.0 | 25.0 | 36.0 | 28.0 | 37.0 | 29.0 | 38.0 | 0.0 | 0.0 | 0.0 |
| 6.0 | 34.0 | 26.0 | 41.0 | 32.0 | 46.0 | 36.0 | 46.0 | 36.0 | 48.0 | 0.0 | 0.0 | 0.0 |
| 10.0 | 46.0 | 36.0 | 57.0 | 44.0 | 63.0 | 49.0 | 60.0 | 47.0 | 64.0 | 0.0 | 0.0 | 0.0 |
| 16.0 | 61.0 | 48.0 | 76.0 | 60.0 | 85.0 | 66.0 | 78.0 | 61.0 | 83.0 | 63.0 | 0.0 | 0.0 |
| 25.0 | 80.0 | 63.0 | 101.0 | 79.0 | 112.0 | 83.0 | 99.0 | 77.0 | 110.0 | 82.0 | 131.0 | 98.0 |
| 35.0 | 99.0 | 77.0 | 125.0 | 97.0 | 138.0 | 103.0 | 119.0 | 93.0 | 132.0 | 98.0 | 162.0 | 122.0 |
| 50.0 | 119.0 | 93.0 | 151.0 | 118.0 | 168.0 | 125.0 | 140.0 | 109.0 | 156.0 | 117.0 | 196.0 | 149.0 |
| 70.0 | 151.0 | 118.0 | 192.0 | 150.0 | 213.0 | 160.0 | 173.0 | 135.0 | 192.0 | 145.0 | 251.0 | 192.0 |
| 95.0 | 182.0 | 142.0 | 232.0 | 181.0 | 258.0 | 195.0 | 204.0 | 159.0 | 230.0 | 173.0 | 304.0 | 235.0 |
| 120.0 | 210.0 | 164.0 | 269.0 | 210.0 | 299.0 | 226.0 | 231.0 | 180.0 | 261.0 | 200.0 | 352.0 | 273.0 |
| 150.0 | 240.0 | 189.0 | 300.0 | 234.0 | 344.0 | 261.0 | 261.0 | 204.0 | 293.0 | 224.0 | 406.0 | 316.0 |
| 185.0 | 273.0 | 215.0 | 341.0 | 266.0 | 392.0 | 298.0 | 292.0 | 228.0 | 331.0 | 255.0 | 463.0 | 363.0 |
| 240.0 | 321.0 | 252.0 | 400.0 | 312.0 | 461.0 | 352.0 | 336.0 | 262.0 | 382.0 | 298.0 | 546.0 | 430.0 |
| 300.0 | 367.0 | 289.0 | 458.0 | 358.0 | 530.0 | 406.0 | 379.0 | 296.0 | 427.0 | 336.0 | 629.0 | 497.0 |
