Nexans H07Z1-K (AS)
Nexans H07Z1-K (AS)

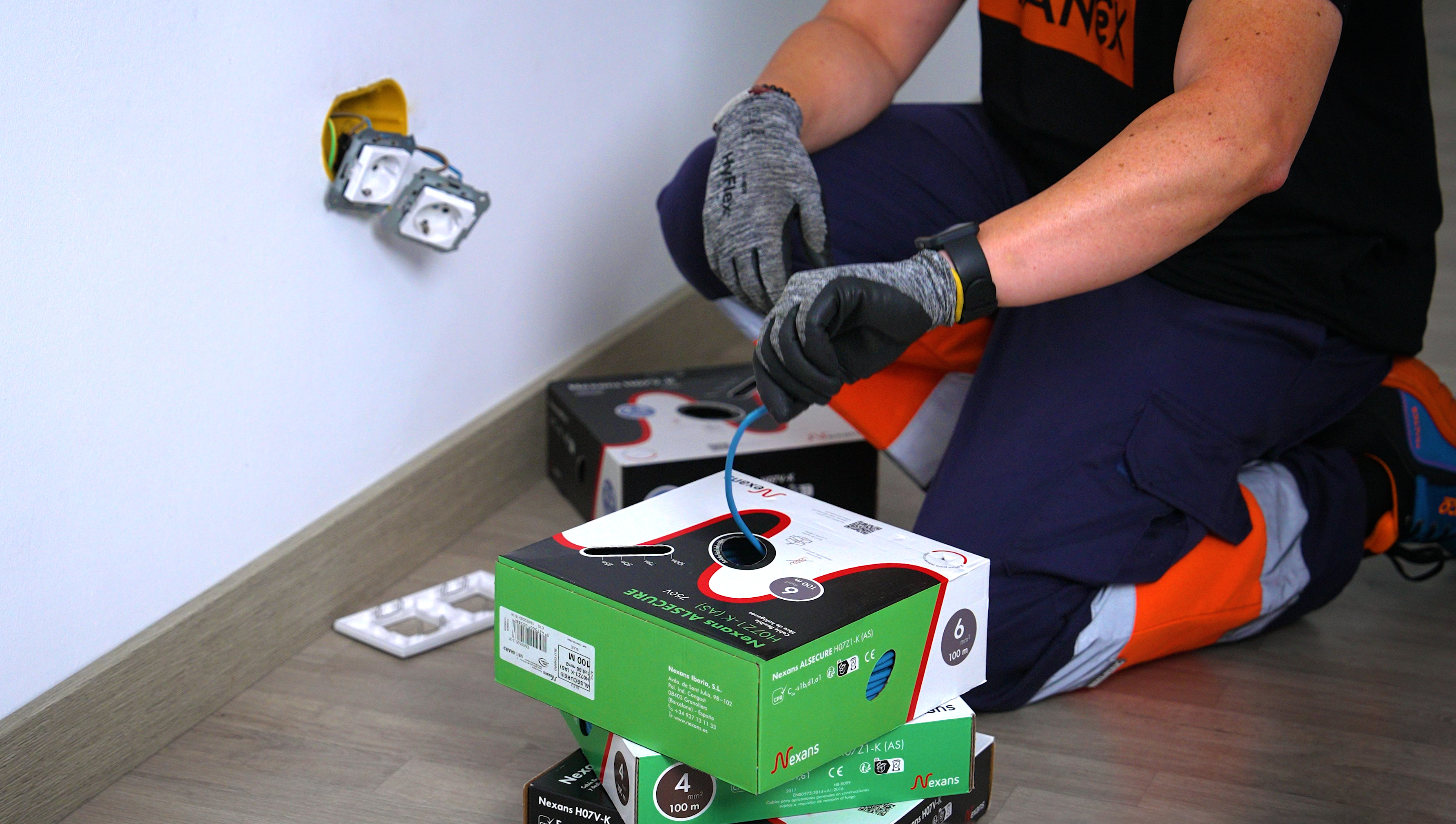

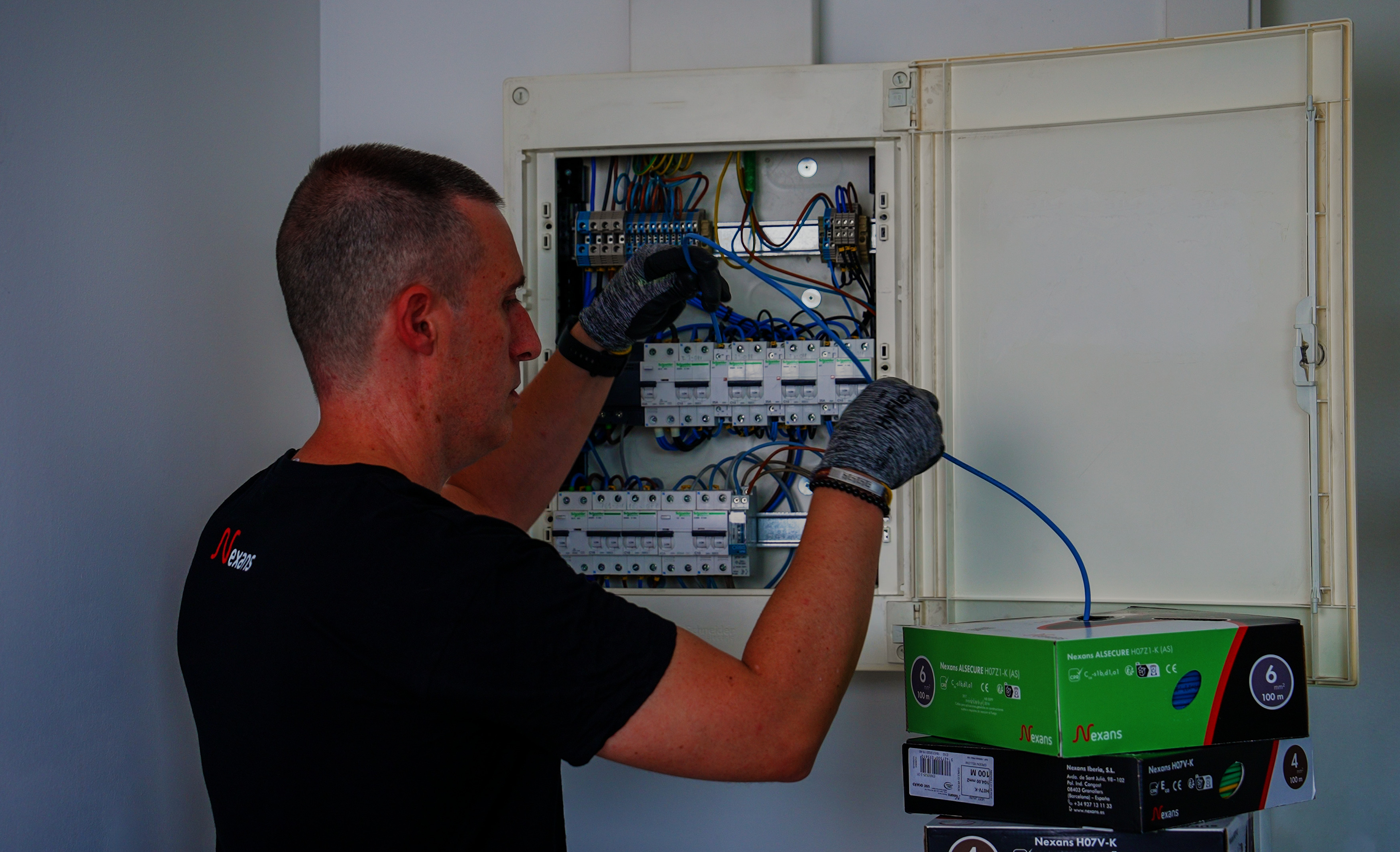

Nexans H07Z1-K are used for fixed secured installations

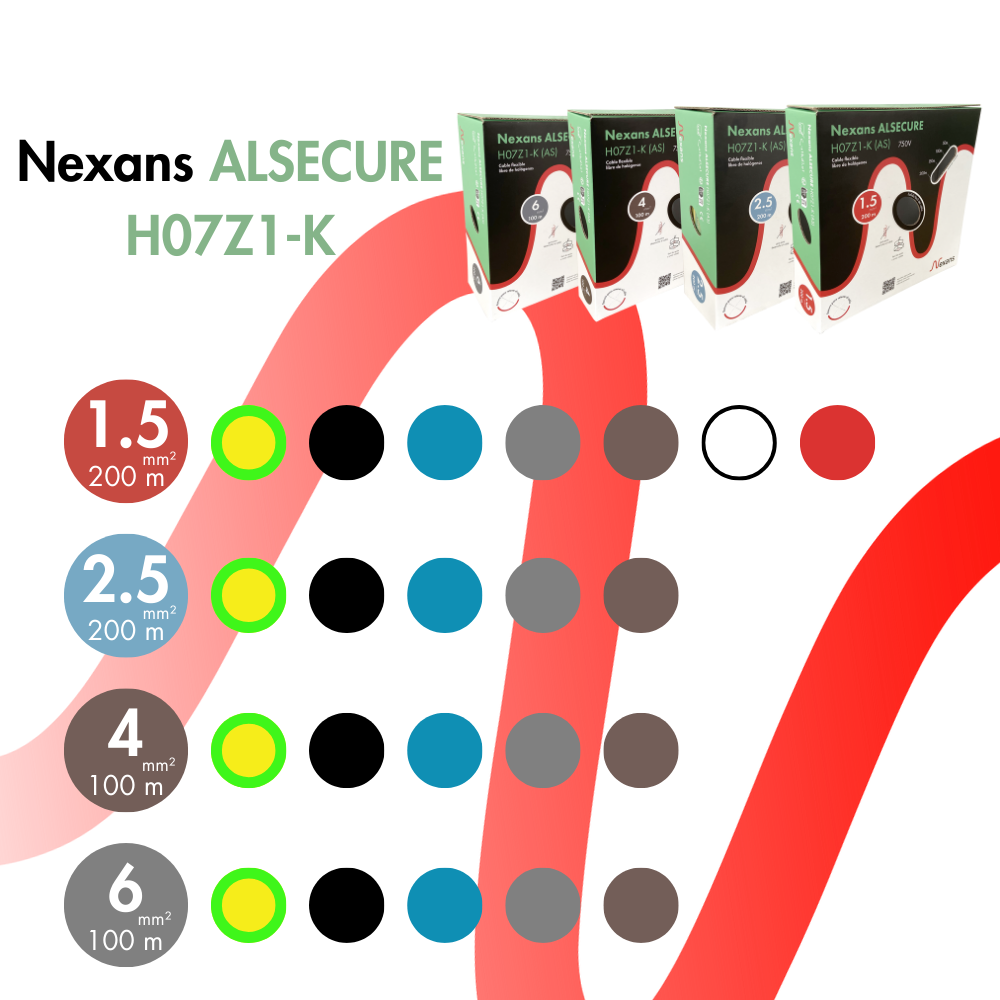

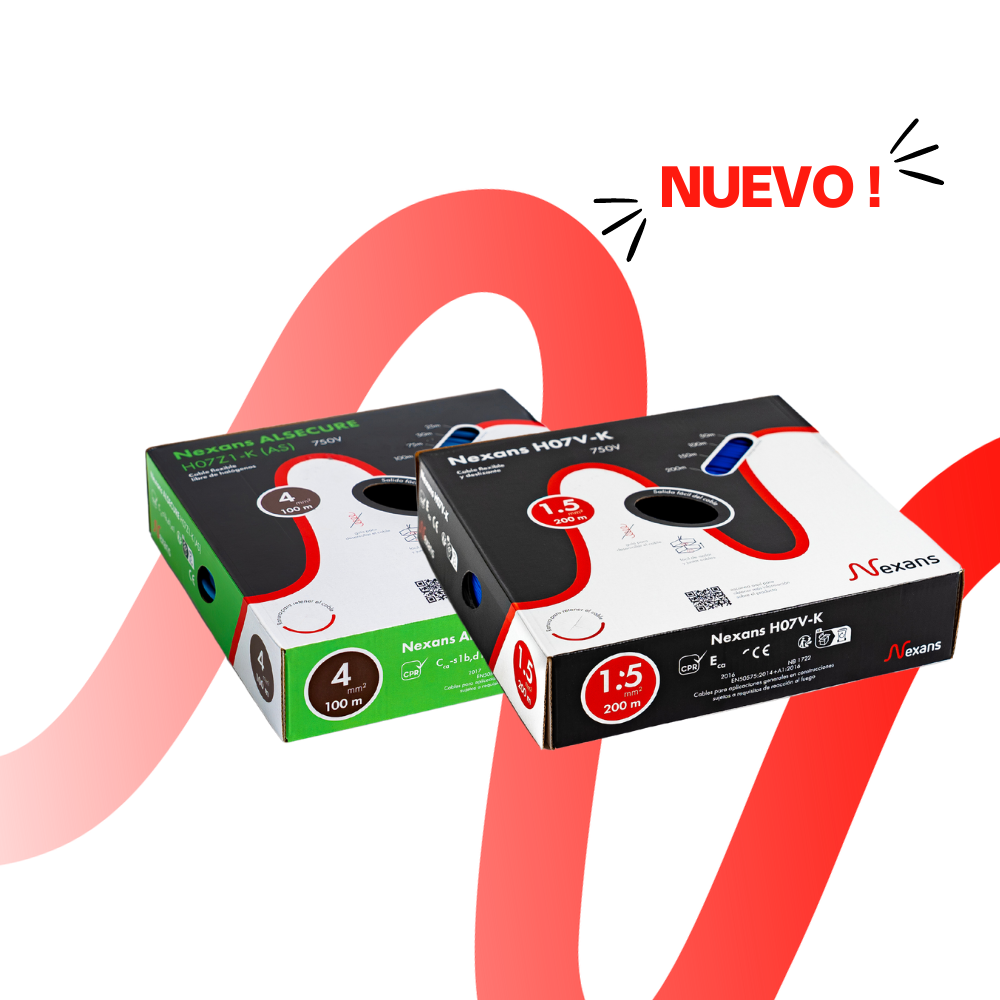

Read moreNexans H07Z1-K Easybox 1x1.5 Blue 200m
Nexans ref. 10286790
- Packaging: Pallet (24000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 1.5 mm²
- Approximate weight: 20 kg/km
- Outer Diameter: 2.9 mm
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 18 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x1.5 Grey 200m
Nexans ref. 10286792
- Packaging: Pallet (24000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 1.5 mm²
- Approximate weight: 20 kg/km
- Outer Diameter: 2.9 mm
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 18 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x1.5 Black 200m
Nexans ref. 10286793
- Packaging: Pallet (24000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 1.5 mm²
- Approximate weight: 20 kg/km
- Outer Diameter: 2.9 mm
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 18 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x1.5 Brown 200m
Nexans ref. 10286814
- Packaging: Pallet (24000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 1.5 mm²
- Approximate weight: 20 kg/km
- Outer Diameter: 2.9 mm
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 18 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1G1.5 Green-Yellow 200m
Nexans ref. 10286815
- Packaging: Pallet (24000m)
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 1.5 mm²
- Approximate weight: 20 kg/km
- Outer Diameter: 2.9 mm
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 18 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x1.5 Red 200m
Nexans ref. 10286816
- Packaging: Pallet (24000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 1.5 mm²
- Approximate weight: 20 kg/km
- Outer Diameter: 2.9 mm
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 18 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x1.5 White 200m
Nexans ref. 10286817
- Packaging: Pallet (24000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 1.5 mm²
- Approximate weight: 20 kg/km
- Outer Diameter: 2.9 mm
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 18 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x2.5 Blue 200m
Nexans ref. 10286818
- Packaging: Pallet (14400m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 2.5 mm²
- Approximate weight: 30 kg/km
- Outer Diameter: 3.6 mm
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 24 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x2.5 Black 200m
Nexans ref. 10286819
- Packaging: Pallet (14400m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 2.5 mm²
- Approximate weight: 30 kg/km
- Outer Diameter: 3.6 mm
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 24 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x2.5 Brown 200m
Nexans ref. 10286820
- Packaging: Pallet (14400m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 2.5 mm²
- Approximate weight: 30 kg/km
- Outer Diameter: 3.6 mm
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 24 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1G2.5 Green-Yellow 200m
Nexans ref. 10286821
- Packaging: Pallet (14400m)
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 2.5 mm²
- Approximate weight: 30 kg/km
- Outer Diameter: 3.6 mm
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 24 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x2.5 Grey 200m
Nexans ref. 10286822
- Packaging: Pallet (14400m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 2.5 mm²
- Approximate weight: 30 kg/km
- Outer Diameter: 3.6 mm
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 24 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x4 Blue 100m
Nexans ref. 10286823
- Packaging: Pallet (12000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 4 mm²
- Approximate weight: 45 kg/km
- Outer Diameter: 4.2 mm
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 32 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x4 Grey 100m
Nexans ref. 10286824
- Packaging: Pallet (12000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 4 mm²
- Approximate weight: 45 kg/km
- Outer Diameter: 4.2 mm
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 32 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x4 Black 100m
Nexans ref. 10286825
- Packaging: Pallet (12000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 4 mm²
- Approximate weight: 45 kg/km
- Outer Diameter: 4.2 mm
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 32 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x4 Brown 100m
Nexans ref. 10286826
- Packaging: Pallet (12000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 4 mm²
- Approximate weight: 45 kg/km
- Outer Diameter: 4.2 mm
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 32 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1G4 Green-Yellow 100m
Nexans ref. 10286827
- Packaging: Pallet (12000m)
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 4 mm²
- Approximate weight: 45 kg/km
- Outer Diameter: 4.2 mm
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 32 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x6 Blue 100m
Nexans ref. 10286828
- Packaging: Pallet (7200m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 6 mm²
- Approximate weight: 65 kg/km
- Outer Diameter: 4.7 mm
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 41 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x6 Black 100m
Nexans ref. 10286829
- Packaging: Pallet (7200m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 6 mm²
- Approximate weight: 65 kg/km
- Outer Diameter: 4.7 mm
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 41 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1G6 Green-Yellow 100m
Nexans ref. 10286830
- Packaging: Pallet (7200m)
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 6 mm²
- Approximate weight: 65 kg/km
- Outer Diameter: 4.7 mm
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 41 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x6 Grey 100m
Nexans ref. 10286831
- Packaging: Pallet (7200m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 6 mm²
- Approximate weight: 65 kg/km
- Outer Diameter: 4.7 mm
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 41 A
- Max. conductor temperature in service: 70 °C
Nexans H07Z1-K Easybox 1x6 Brown 100m
Nexans ref. 10286832
- Packaging: Pallet (7200m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 6 mm²
- Approximate weight: 65 kg/km
- Outer Diameter: 4.7 mm
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 41 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1G10 Green-Yellow GL8000
Nexans ref. 10093174 - Country ref. 102 - 336
- Packaging: Pallet (8000m)
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 10 mm²
- Approximate weight: 120 kg/km
- Outer Diameter: 6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1G10 Green-Yellow P5.4 R100
Nexans ref. 10072536 - Country ref. 102 - 336
- Packaging: Pallet (5400m)
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 10 mm²
- Approximate weight: 120 kg/km
- Outer Diameter: 6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1x10 Blue P5.4 R100
Nexans ref. 10072535 - Country ref. 102 - 336
- Packaging: Pallet (5400m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 10 mm²
- Approximate weight: 120 kg/km
- Outer Diameter: 6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1x10 Grey P5.4 R100
Nexans ref. 10072537 - Country ref. 102 - 336
- Packaging: Pallet (5400m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 10 mm²
- Approximate weight: 120 kg/km
- Outer Diameter: 6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1x10 Black P5.4 R100
Nexans ref. 10072539 - Country ref. 102 - 336
- Packaging: Pallet (5400m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 10 mm²
- Approximate weight: 120 kg/km
- Outer Diameter: 6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1X10 Blue GL8000
Nexans ref. 10093176 - Country ref. 102 - 336
- Packaging: Cut to length (8000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 10 mm²
- Approximate weight: 120 kg/km
- Outer Diameter: 6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1X10 Brown GL8000
Nexans ref. 10093179 - Country ref. 102 - 336
- Packaging: Cut to length (8000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 10 mm²
- Approximate weight: 120 kg/km
- Outer Diameter: 6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1x10 Brown P5.4 R100
Nexans ref. 10072538 - Country ref. 102 - 336
- Packaging: Pallet (5400m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 10 mm²
- Approximate weight: 120 kg/km
- Outer Diameter: 6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1X10 Grey GL8000
Nexans ref. 10093178 - Country ref. 102 - 336
- Packaging: Cut to length (8000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 10 mm²
- Approximate weight: 120 kg/km
- Outer Diameter: 6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1X10 Black GL8000
Nexans ref. 10093175 - Country ref. 102 - 336
- Packaging: Cut to length (8000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 10 mm²
- Approximate weight: 120 kg/km
- Outer Diameter: 6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1G16 Green-Yellow P4.2 R100
Nexans ref. 10072541 - Country ref. 102 - 336
- Packaging: Pallet (4200m)
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 16 mm²
- Approximate weight: 175 kg/km
- Outer Diameter: 7.2 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 68 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1G16 Green-Yellow GL6000
Nexans ref. 10093181 - Country ref. 102 - 336
- Packaging: Cut to length (6000m)
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 16 mm²
- Approximate weight: 175 kg/km
- Outer Diameter: 7.2 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 68 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1x16 Blue P4.2 R100
Nexans ref. 10072540 - Country ref. 102 - 336
- Packaging: Pallet (4200m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 16 mm²
- Approximate weight: 175 kg/km
- Outer Diameter: 7.2 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1x16 Brown P4.2 R100
Nexans ref. 10072543 - Country ref. 102 - 336
- Packaging: Pallet (4200m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 16 mm²
- Approximate weight: 175 kg/km
- Outer Diameter: 7.2 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1x16 GreyP4.2 R100
Nexans ref. 10072542 - Country ref. 102 - 336
- Packaging: Pallet (4200m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 16 mm²
- Approximate weight: 175 kg/km
- Outer Diameter: 7.2 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1x16 Black P4.2 R100
Nexans ref. 10072544 - Country ref. 102 - 336
- Packaging: Pallet (4200m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 16 mm²
- Approximate weight: 175 kg/km
- Outer Diameter: 7.2 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1X16 Blue GL6000
Nexans ref. 10093185 - Country ref. 102 - 336
- Packaging: Cut to length (6000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 16 mm²
- Approximate weight: 175 kg/km
- Outer Diameter: 7.2 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1X16 Brown GL6000
Nexans ref. 10093188 - Country ref. 102 - 336
- Packaging: Cut to length (6000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 16 mm²
- Approximate weight: 175 kg/km
- Outer Diameter: 7.2 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1X16 Grey GL6000
Nexans ref. 10093187 - Country ref. 102 - 336
- Packaging: Cut to length (6000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 16 mm²
- Approximate weight: 175 kg/km
- Outer Diameter: 7.2 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
- Max. conductor temperature in service: 70 °C
ALSECURE-K 1x16 Black GL6000
Nexans ref. 10093183 - Country ref. 102 - 336
- Packaging: Cut to length (6000m)
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 16 mm²
- Approximate weight: 175 kg/km
- Outer Diameter: 7.2 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS), 1x25 mm² , blue
Nexans ref. 10072545 - Country ref. 336
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 25 mm²
- Approximate weight: 25 kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS), 1x25 mm², grey
Nexans ref. 10072547 - Country ref. 336
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 25 mm²
- Approximate weight: 25 kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS), 1x25 mm², black
Nexans ref. 10072549 - Country ref. 336
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 25 mm²
- Approximate weight: 25 kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS), 1x25 mm², brown
Nexans ref. 10072548 - Country ref. 336
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 25 mm²
- Approximate weight: 25 kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS), 1G25 mm², Green-Yellow
Nexans ref. 10072546 - Country ref. 336
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 25 mm²
- Approximate weight: 25 kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS), 1x35 mm², blue
Nexans ref. 10097989 - Country ref. 336
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 35 mm²
- Approximate weight: 35 kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS), 1x35 mm², black
Nexans ref. 10097990 - Country ref. 336
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 35 mm²
- Approximate weight: 35 kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS), 1G35 mm², Green-Yellow
Nexans ref. 10097991 - Country ref. 336
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 35 mm²
- Approximate weight: 35 kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS), 1x50 mm², blue
Nexans ref. 10100014 - Country ref. 336
- With Green/Yellow core: No
- With smaller neutral conductor: No
- Conductor cross-section: 50 mm²
- Approximate weight: 50 kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS), 1G50 mm², Green-Yellow
Nexans ref. 10100015 - Country ref. 336
- With Green/Yellow core: Yes
- With smaller neutral conductor: No
- Conductor cross-section: 50 mm²
- Approximate weight: 50 kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: 70 °C
ALSECURE® H07Z1-K (AS) 1x95 AV
Nexans ref. 10283813 - Country ref. 336
- With Green/Yellow core:
- With smaller neutral conductor:
- Conductor cross-section: 95 mm²
- Approximate weight: - kg/km
- Outer Diameter: - mm
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Permissible current rating in open air: - A
- Max. conductor temperature in service: - °C
Description
Description
Standards
-
InternationalEN 50525-3-31; EN 50266-2-4; EN 50267-2-2; EN 50575; IEC 60228; IEC 60332-1; IEC 60332-3-24; IEC 61034-2; UNE EN 50267-2-3 ; UNE-EN 50265-2-1
-
NationalNF C32-070/C2; UNE 21022; UNE 211002
Application
Flexible insulated conductors Nexans H07Z1-K are used for fixed secured protected installation.
Halogen free, fire retardant with low emission of smoke, Nexans H07Z1-K may be used in public buildings or areas where fire safety is concerned
Installation
Nexans H07Z1-K can be installed in open air, in conduit, in cable ducting, in switch cabinets.
Thanks to the sliding properties of the insulation, installation is made easier while pulling in...
Encuentra este producto en EASYCALC™
New cardboard packaging for H07V-K and H07Z1-K
Color code for Nexans Alsecure H07Z1-K cross-section
Cable colors available
-
-
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Current capacity table PVC insulation multicore three phase
Conductor cross-section | A2 - Multi-core cable in conduit in a thermally insulated wall | B2 - Multi-core cable in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | E - Multi-core cable in free air | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
1.5 | 13.0 | 0.0 | 15.0 | 0.0 | 17.5 | 0.0 | 18.0 | 0.0 | 19.0 | 0.0 | 18.5 | 0.0 |
2.5 | 17.5 | 13.5 | 20.0 | 15.5 | 24.0 | 18.5 | 24.0 | 18.5 | 24.0 | 0.0 | 25.0 | 19.5 |
4.0 | 23.0 | 17.5 | 27.0 | 21.0 | 32.0 | 25.0 | 30.0 | 24.0 | 33.0 | 0.0 | 34.0 | 26.0 |
6.0 | 29.0 | 23.0 | 34.0 | 27.0 | 41.0 | 32.0 | 38.0 | 30.0 | 41.0 | 0.0 | 43.0 | 33.0 |
10.0 | 39.0 | 31.0 | 46.0 | 36.0 | 57.0 | 44.0 | 50.0 | 39.0 | 54.0 | 0.0 | 60.0 | 46.0 |
16.0 | 52.0 | 41.0 | 62.0 | 48.0 | 76.0 | 59.0 | 64.0 | 50.0 | 70.0 | 53.0 | 80.0 | 61.0 |
25.0 | 68.0 | 53.0 | 80.0 | 62.0 | 96.0 | 73.0 | 82.0 | 64.0 | 92.0 | 69.0 | 101.0 | 78.0 |
35.0 | 83.0 | 65.0 | 99.0 | 77.0 | 119.0 | 90.0 | 98.0 | 77.0 | 110.0 | 83.0 | 126.0 | 96.0 |
50.0 | 99.0 | 78.0 | 118.0 | 92.0 | 144.0 | 110.0 | 116.0 | 91.0 | 130.0 | 99.0 | 153.0 | 117.0 |
70.0 | 125.0 | 98.0 | 149.0 | 116.0 | 184.0 | 140.0 | 143.0 | 112.0 | 162.0 | 122.0 | 196.0 | 150.0 |
95.0 | 150.0 | 118.0 | 179.0 | 139.0 | 223.0 | 170.0 | 169.0 | 132.0 | 193.0 | 148.0 | 238.0 | 183.0 |
120.0 | 172.0 | 135.0 | 206.0 | 160.0 | 259.0 | 197.0 | 192.0 | 150.0 | 220.0 | 169.0 | 276.0 | 212.0 |
150.0 | 196.0 | 155.0 | 225.0 | 176.0 | 299.0 | 227.0 | 217.0 | 169.0 | 246.0 | 189.0 | 319.0 | 245.0 |
185.0 | 223.0 | 176.0 | 255.0 | 199.0 | 341.0 | 259.0 | 243.0 | 190.0 | 278.0 | 214.0 | 364.0 | 280.0 |
240.0 | 261.0 | 207.0 | 297.0 | 232.0 | 403.0 | 305.0 | 280.0 | 218.0 | 320.0 | 250.0 | 430.0 | 330.0 |
300.0 | 298.0 | 237.0 | 339.0 | 265.0 | 464.0 | 351.0 | 316.0 | 247.0 | 359.0 | 282.0 | 497.0 | 381.0 |
Current capacity table PVC insulation multicore single phase
Conductor cross-section | A2 - Multi-core cable in conduit in a thermally insulated wall | B2 - Multi-core cable in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | E - Multi-core cable in free air | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
1.5 | 14.0 | 0.0 | 16.5 | 0.0 | 19.5 | 0.0 | 22.0 | 0.0 | 22.0 | 0.0 | 22.0 | 0.0 |
2.5 | 18.5 | 14.5 | 23.0 | 17.5 | 27.0 | 21.0 | 27.0 | 22.0 | 28.0 | 0.0 | 30.0 | 23.0 |
4.0 | 25.0 | 19.5 | 30.0 | 24.0 | 36.0 | 28.0 | 37.0 | 29.0 | 38.0 | 0.0 | 40.0 | 31.0 |
6.0 | 32.0 | 25.0 | 38.0 | 30.0 | 46.0 | 36.0 | 46.0 | 36.0 | 48.0 | 0.0 | 51.0 | 39.0 |
10.0 | 43.0 | 33.0 | 52.0 | 41.0 | 63.0 | 49.0 | 60.0 | 47.0 | 64.0 | 0.0 | 70.0 | 54.0 |
16.0 | 57.0 | 44.0 | 69.0 | 54.0 | 85.0 | 66.0 | 78.0 | 61.0 | 83.0 | 63.0 | 94.0 | 73.0 |
25.0 | 75.0 | 58.0 | 90.0 | 71.0 | 112.0 | 83.0 | 99.0 | 77.0 | 110.0 | 82.0 | 119.0 | 89.0 |
35.0 | 92.0 | 71.0 | 111.0 | 86.0 | 138.0 | 103.0 | 119.0 | 93.0 | 132.0 | 98.0 | 148.0 | 111.0 |
50.0 | 110.0 | 86.0 | 133.0 | 104.0 | 168.0 | 125.0 | 140.0 | 109.0 | 156.0 | 117.0 | 180.0 | 135.0 |
70.0 | 139.0 | 108.0 | 168.0 | 131.0 | 213.0 | 160.0 | 173.0 | 135.0 | 192.0 | 145.0 | 232.0 | 173.0 |
95.0 | 167.0 | 130.0 | 201.0 | 157.0 | 258.0 | 195.0 | 204.0 | 159.0 | 230.0 | 173.0 | 282.0 | 210.0 |
120.0 | 192.0 | 150.0 | 232.0 | 181.0 | 299.0 | 226.0 | 231.0 | 180.0 | 261.0 | 200.0 | 328.0 | 244.0 |
150.0 | 219.0 | 172.0 | 258.0 | 201.0 | 344.0 | 261.0 | 261.0 | 204.0 | 293.0 | 224.0 | 379.0 | 282.0 |
185.0 | 248.0 | 195.0 | 294.0 | 230.0 | 392.0 | 298.0 | 292.0 | 228.0 | 331.0 | 255.0 | 434.0 | 322.0 |
240.0 | 291.0 | 229.0 | 344.0 | 269.0 | 461.0 | 352.0 | 336.0 | 262.0 | 382.0 | 298.0 | 514.0 | 380.0 |
300.0 | 334.0 | 263.0 | 394.0 | 308.0 | 530.0 | 406.0 | 379.0 | 296.0 | 427.0 | 336.0 | 593.0 | 439.0 |
Current capacity table PVC insulation single core three phase
Conductor cross-section | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | Ft - Single-core trefoil cables, touching in free air | G - Single-core horizontal spaced | Gv - Single-core flat vertical spaced | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
1.5 | 13.5 | 0.0 | 15.5 | 0.0 | 17.5 | 0.0 | 18.0 | 0.0 | 19.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
2.5 | 18.0 | 14.0 | 21.0 | 16.5 | 24.0 | 18.5 | 24.0 | 18.5 | 24.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
4.0 | 24.0 | 18.5 | 28.0 | 22.0 | 32.0 | 25.0 | 30.0 | 24.0 | 33.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
6.0 | 31.0 | 24.0 | 36.0 | 28.0 | 41.0 | 32.0 | 38.0 | 30.0 | 41.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
10.0 | 42.0 | 32.0 | 50.0 | 39.0 | 57.0 | 44.0 | 50.0 | 39.0 | 54.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
16.0 | 56.0 | 43.0 | 68.0 | 53.0 | 76.0 | 59.0 | 64.0 | 50.0 | 70.0 | 53.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
25.0 | 73.0 | 57.0 | 89.0 | 70.0 | 96.0 | 73.0 | 82.0 | 64.0 | 92.0 | 69.0 | 114.0 | 87.0 | 110.0 | 146.0 | 84.0 | 112.0 | 130.0 | 99.0 |
35.0 | 89.0 | 70.0 | 110.0 | 86.0 | 119.0 | 90.0 | 98.0 | 77.0 | 110.0 | 83.0 | 143.0 | 109.0 | 137.0 | 181.0 | 105.0 | 139.0 | 162.0 | 124.0 |
50.0 | 106.0 | 84.0 | 134.0 | 104.0 | 144.0 | 110.0 | 116.0 | 91.0 | 130.0 | 99.0 | 174.0 | 133.0 | 167.0 | 219.0 | 128.0 | 169.0 | 197.0 | 152.0 |
70.0 | 138.0 | 107.0 | 171.0 | 133.0 | 184.0 | 140.0 | 143.0 | 112.0 | 162.0 | 122.0 | 225.0 | 173.0 | 216.0 | 281.0 | 166.0 | 217.0 | 254.0 | 196.0 |
95.0 | 164.0 | 129.0 | 207.0 | 161.0 | 223.0 | 170.0 | 169.0 | 132.0 | 193.0 | 148.0 | 275.0 | 212.0 | 264.0 | 341.0 | 203.0 | 265.0 | 311.0 | 241.0 |
120.0 | 188.0 | 149.0 | 239.0 | 186.0 | 259.0 | 197.0 | 192.0 | 150.0 | 220.0 | 169.0 | 321.0 | 247.0 | 308.0 | 396.0 | 237.0 | 308.0 | 362.0 | 282.0 |
150.0 | 216.0 | 170.0 | 262.0 | 204.0 | 299.0 | 227.0 | 217.0 | 169.0 | 246.0 | 189.0 | 372.0 | 287.0 | 356.0 | 456.0 | 274.0 | 356.0 | 419.0 | 327.0 |
185.0 | 245.0 | 194.0 | 296.0 | 230.0 | 341.0 | 259.0 | 243.0 | 190.0 | 278.0 | 214.0 | 427.0 | 330.0 | 409.0 | 521.0 | 315.0 | 407.0 | 480.0 | 376.0 |
240.0 | 286.0 | 227.0 | 346.0 | 269.0 | 403.0 | 305.0 | 280.0 | 218.0 | 320.0 | 250.0 | 507.0 | 392.0 | 485.0 | 615.0 | 375.0 | 482.0 | 569.0 | 447.0 |
300.0 | 328.0 | 261.0 | 394.0 | 306.0 | 464.0 | 351.0 | 316.0 | 247.0 | 359.0 | 282.0 | 587.0 | 455.0 | 561.0 | 709.0 | 434.0 | 557.0 | 659.0 | 519.0 |
Current capacity table PVC insulation single core single phase
Conductor cross-section | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
1.5 | 14.5 | 0.0 | 17.5 | 0.0 | 19.5 | 0.0 | 22.0 | 0.0 | 22.0 | 0.0 | 0.0 | 0.0 |
2.5 | 19.5 | 15.0 | 24.0 | 18.5 | 27.0 | 21.0 | 29.0 | 22.0 | 28.0 | 0.0 | 0.0 | 0.0 |
4.0 | 26.0 | 20.0 | 32.0 | 25.0 | 36.0 | 28.0 | 37.0 | 29.0 | 38.0 | 0.0 | 0.0 | 0.0 |
6.0 | 34.0 | 26.0 | 41.0 | 32.0 | 46.0 | 36.0 | 46.0 | 36.0 | 48.0 | 0.0 | 0.0 | 0.0 |
10.0 | 46.0 | 36.0 | 57.0 | 44.0 | 63.0 | 49.0 | 60.0 | 47.0 | 64.0 | 0.0 | 0.0 | 0.0 |
16.0 | 61.0 | 48.0 | 76.0 | 60.0 | 85.0 | 66.0 | 78.0 | 61.0 | 83.0 | 63.0 | 0.0 | 0.0 |
25.0 | 80.0 | 63.0 | 101.0 | 79.0 | 112.0 | 83.0 | 99.0 | 77.0 | 110.0 | 82.0 | 131.0 | 98.0 |
35.0 | 99.0 | 77.0 | 125.0 | 97.0 | 138.0 | 103.0 | 119.0 | 93.0 | 132.0 | 98.0 | 162.0 | 122.0 |
50.0 | 119.0 | 93.0 | 151.0 | 118.0 | 168.0 | 125.0 | 140.0 | 109.0 | 156.0 | 117.0 | 196.0 | 149.0 |
70.0 | 151.0 | 118.0 | 192.0 | 150.0 | 213.0 | 160.0 | 173.0 | 135.0 | 192.0 | 145.0 | 251.0 | 192.0 |
95.0 | 182.0 | 142.0 | 232.0 | 181.0 | 258.0 | 195.0 | 204.0 | 159.0 | 230.0 | 173.0 | 304.0 | 235.0 |
120.0 | 210.0 | 164.0 | 269.0 | 210.0 | 299.0 | 226.0 | 231.0 | 180.0 | 261.0 | 200.0 | 352.0 | 273.0 |
150.0 | 240.0 | 189.0 | 300.0 | 234.0 | 344.0 | 261.0 | 261.0 | 204.0 | 293.0 | 224.0 | 406.0 | 316.0 |
185.0 | 273.0 | 215.0 | 341.0 | 266.0 | 392.0 | 298.0 | 292.0 | 228.0 | 331.0 | 255.0 | 463.0 | 363.0 |
240.0 | 321.0 | 252.0 | 400.0 | 312.0 | 461.0 | 352.0 | 336.0 | 262.0 | 382.0 | 298.0 | 546.0 | 430.0 |
300.0 | 367.0 | 289.0 | 458.0 | 358.0 | 530.0 | 406.0 | 379.0 | 296.0 | 427.0 | 336.0 | 629.0 | 497.0 |
Selling & delivery Information
Ink jet marking
USE - HAR- ALSECURE H07Z1-K (AS) TYPE 2 AENOR PLANT N° NEXANS – DAY YEAR
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
