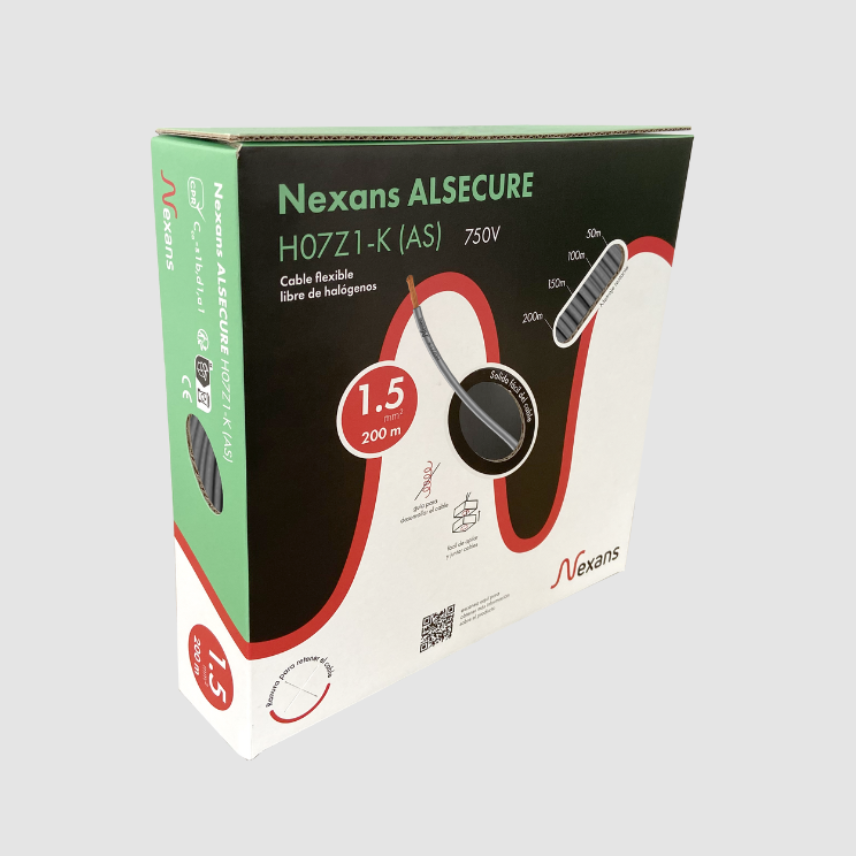

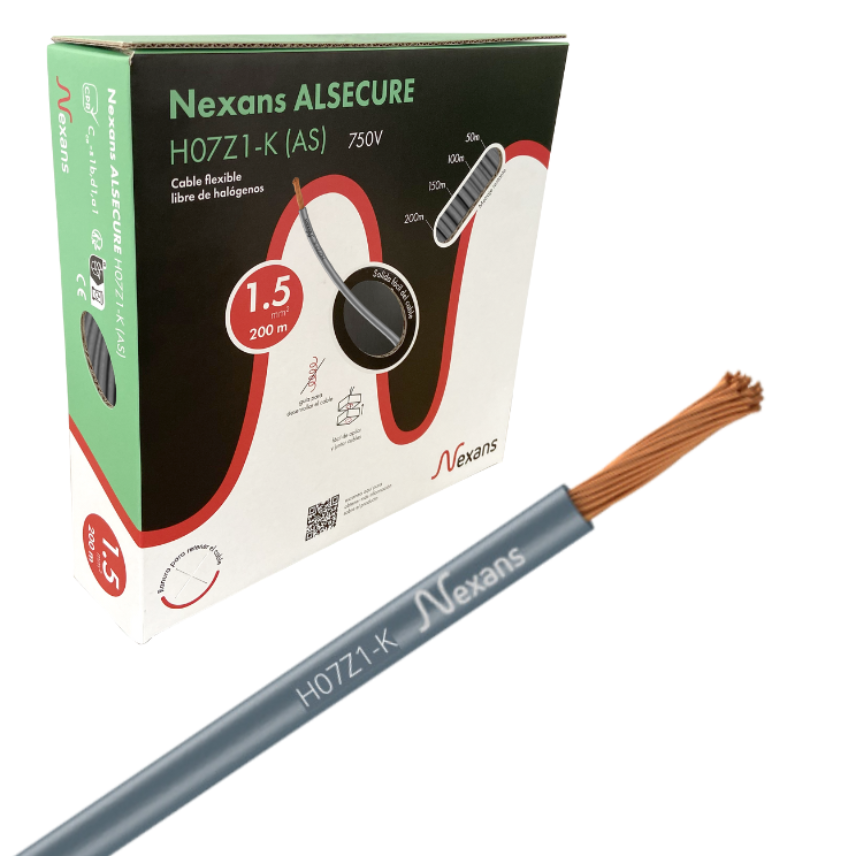

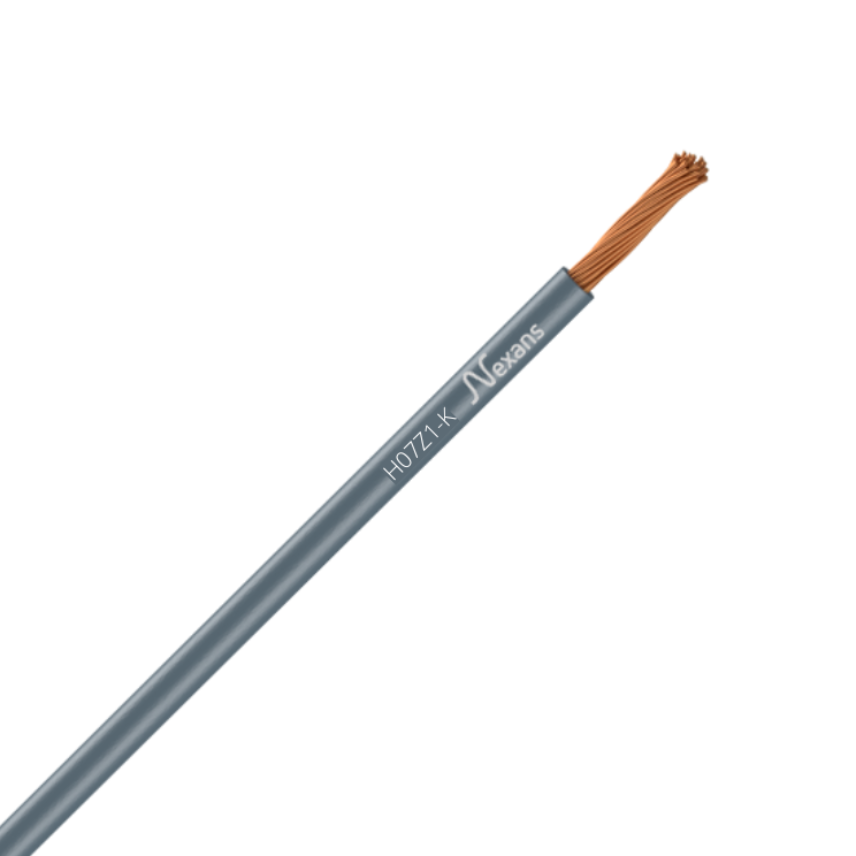

Nexans H07Z1-K Easybox 1x1.5 Grey 200m
Nexans H07Z1-K Easybox 1x1.5 Grey 200m
Nexans H07Z1-K are used for fixed secured installations
Read more- Nexans ref. : 10286792
Description
Description
Standards
-
ProductEN 50525-3-31; EN 50575; IEC 60228; UNE 21022; UNE 211002
-
TestEN 50266-2-4; EN 50267-2-2; IEC 60332-1; IEC 60332-3-24; IEC 61034-2; NF C32-070/C2; UNE EN 50267-2-3 ; UNE-EN 50265-2-1
Application
Flexible insulated conductors Nexans H07Z1-K are used for fixed secured protected installation.
Halogen free, fire retardant with low emission of smoke, Nexans H07Z1-K may be used in public buildings or areas where fire safety is concerned
Installation
Nexans H07Z1-K can be installed in open air, in conduit, in cable ducting, in switch cabinets.
Thanks to the sliding properties of the insulation, installation is made easier while pulling in...
Encuentra este producto en EASYCALC™
New cardboard packaging for H07V-K and H07Z1-K
Color code for Nexans Alsecure H07Z1-K cross-section
Cable colors available
-
-
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Insulation
Halogen free, TI 7 acc. EN 50363-7
Lead free
Yes
Halogen free
Yes
Conductor shape
Circular
Insulation colour
Grey
With Green/Yellow core
No
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
1.5 mm²
Approximate weight
20 kg/km
Neutral conductor section (when smaller)
- mm²
Number of cores
1
Outer Diameter
2.9 mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Max. DC resistance of the conductor at 20°C
13.3 Ohm/km
Maximum operating voltage
750 V
Permissible current rating in open air
18 A
Test voltage
2500 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Flexible
Mechanical resistance to impacts
Low
Usage characteristics
Usage characteristics
Max. conductor temperature in service
70 °C
Fire retardant
EN IEC 60332-3-24 (cat C)
Flame retardant
EN 50265-2-1
Smoke density
EN 50268-2
Chemical resistance
Restricted to oil, acid & base
Maximum operating temperature
70 °C
Packaging
Coil
Water proof
Limited
Weather resistance
Restricted, not ozon stable
Resources
Resources
Documentation
DoP NEXANS ALSECURE 1X1,5 - GREY
pdf — 166.6 kB
Current capacity table PVC insulation multicore three phase
| Conductor cross-section | A2 - Multi-core cable in conduit in a thermally insulated wall | B2 - Multi-core cable in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | E - Multi-core cable in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Conductor cross-section 1.5 |
A2 - Multi-core cable in conduit in a thermally insulated wall
13.0 |
B2 - Multi-core cable in conduit on a wooden wall
0.0 |
C - Single-core or multi-core cable on a wooden wall
15.0 |
D1 - Single-core or Multi-core cable in ducts in the ground
0.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
17.5 |
E - Multi-core cable in free air
0.0 |
mm² 18.0 |
Cu 0.0 |
Al 19.0 |
Cu 0.0 |
Al 18.5 |
Cu 0.0 |
Current capacity table PVC insulation multicore single phase
| Conductor cross-section | A2 - Multi-core cable in conduit in a thermally insulated wall | B2 - Multi-core cable in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | E - Multi-core cable in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Conductor cross-section 1.5 |
A2 - Multi-core cable in conduit in a thermally insulated wall
14.0 |
B2 - Multi-core cable in conduit on a wooden wall
0.0 |
C - Single-core or multi-core cable on a wooden wall
16.5 |
D1 - Single-core or Multi-core cable in ducts in the ground
0.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
19.5 |
E - Multi-core cable in free air
0.0 |
mm² 22.0 |
Cu 0.0 |
Al 22.0 |
Cu 0.0 |
Al 22.0 |
Cu 0.0 |
Current capacity table PVC insulation single core three phase
| Conductor cross-section | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | Ft - Single-core trefoil cables, touching in free air | G - Single-core horizontal spaced | Gv - Single-core flat vertical spaced | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Conductor cross-section 1.5 |
A1 - Insulated conductors in conduit in a thermally insulated wall
13.5 |
B1 - Insulated conductors in conduit on a wooden wall
0.0 |
C - Single-core or multi-core cable on a wooden wall
15.5 |
D1 - Single-core or Multi-core cable in ducts in the ground
0.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
17.5 |
F - Single-core flat cables, touching in free air
0.0 |
Ft - Single-core trefoil cables, touching in free air
18.0 |
G - Single-core horizontal spaced
0.0 |
Gv - Single-core flat vertical spaced
19.0 |
mm² 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Current capacity table PVC insulation single core single phase
| Conductor cross-section | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Conductor cross-section 1.5 |
A1 - Insulated conductors in conduit in a thermally insulated wall
14.5 |
B1 - Insulated conductors in conduit on a wooden wall
0.0 |
C - Single-core or multi-core cable on a wooden wall
17.5 |
D1 - Single-core or Multi-core cable in ducts in the ground
0.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
19.5 |
F - Single-core flat cables, touching in free air
0.0 |
mm² 22.0 |
Cu 0.0 |
Al 22.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Selling & delivery Information
Ink jet marking
USE - HAR- ALSECURE H07Z1-K (AS) TYPE 2 AENOR PLANT N° NEXANS – DAY YEAR
Declaration of Performance
- Declaration of Performance n� : 1000150-FRAU
- Certification Date : 3/21/23
- AVCP (Assessment and Verification of Constancy of Performance) : System 1+
- Notified body : NB 099
- Declared performance : Cca-s1b,d1,a1
