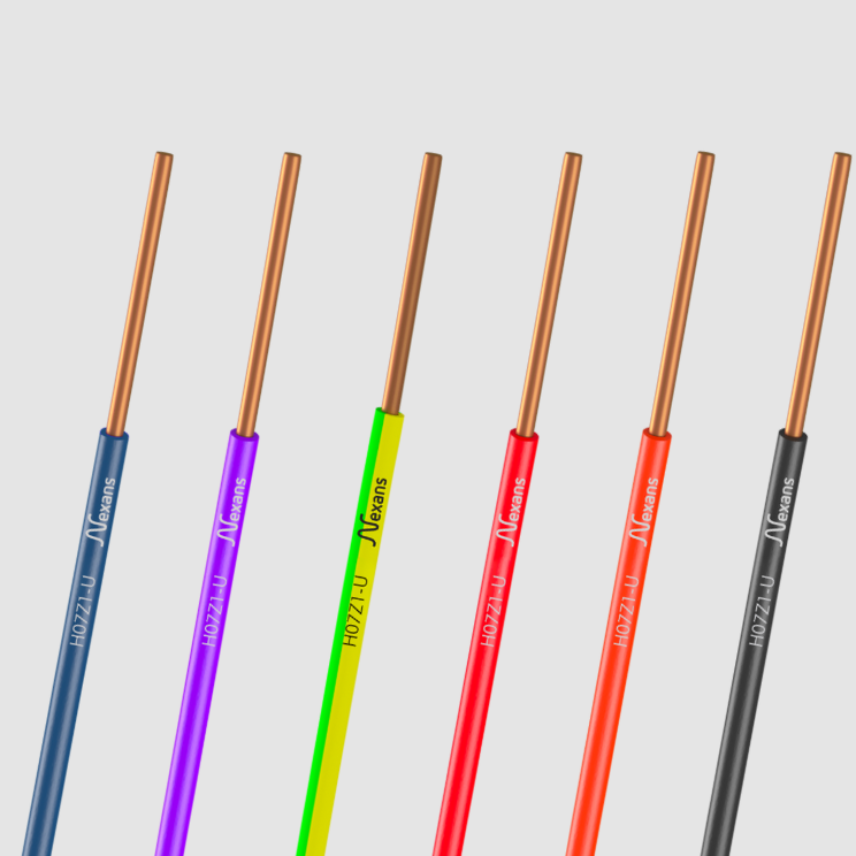

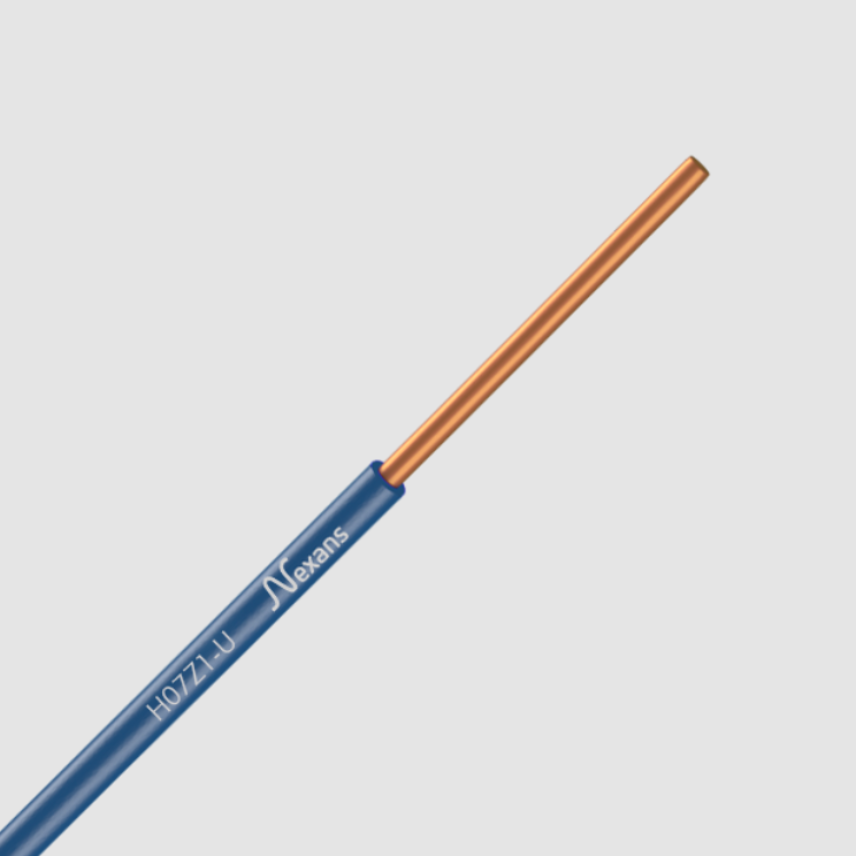

Nexans ALSECURE® H07Z1-U/H07Z1-R type 2
Nexans ALSECURE® H07Z1-U/H07Z1-R type 2
Nexans ALSECURE® H07Z1-U / H047Z1-R type 2 wires are not only halogen free (SA, SD) and flame retardant (F1), they are also fire retardant (F2).
Read moreNexans ALSECURE FIL H07Z1-U 1X1.5 VI R100
Nexans ref. 10270109
- Packaging: Coil (100m)
- Sheath colour: -
- Conductor cross-section: 1.5 mm²
Nexans ALSECURE FIL H07Z1-U 1X1.5 NR R100
Nexans ref. 10270106
- Packaging: Coil (100m)
- Sheath colour: -
- Conductor cross-section: 1.5 mm²
Nexans ALSECURE FIL H07Z1-U 1X1.5 BE R100
Nexans ref. 10270107
- Packaging: Coil (100m)
- Sheath colour: Blue
- Conductor cross-section: 1.5 mm²
Nexans ALSECURE FIL H07Z1-U 1x1.5 BR R100
Nexans ref. 10272936
- Packaging: Coil (100m)
- Sheath colour: Brown
- Conductor cross-section: 1.5 mm²
Nexans ALSECURE FIL H07Z1-U 1G1.5 VJ R100
Nexans ref. 10270114
- Packaging: Coil (100m)
- Sheath colour: Green / Yellow
- Conductor cross-section: 1.5 mm²
Nexans ALSECURE FIL H07Z1-U 1x1.5 GR R100
Nexans ref. 10272937
- Packaging: Coil (100m)
- Sheath colour: Grey
- Conductor cross-section: 1.5 mm²
Nexans ALSECURE FIL H07Z1-U 1X1.5 OR R100
Nexans ref. 10270110
- Packaging: Coil (100m)
- Sheath colour: Orange
- Conductor cross-section: 1.5 mm²
Nexans ALSECURE FIL H07Z1-U 1X1.5 RG R100
Nexans ref. 10270108
- Packaging: Coil (100m)
- Sheath colour: Red
- Conductor cross-section: 1.5 mm²
Nexans ALSECURE FIL H07Z1-U 1x1.5 BA R100
Nexans ref. 10272938
- Packaging: Coil (100m)
- Sheath colour: White
- Conductor cross-section: 1.5 mm²
Nexans ALSECURE FIL H07Z1-U 1x2.5 NR R100
Nexans ref. 10272939
- Packaging: Coil (100m)
- Sheath colour: Black
- Conductor cross-section: 2.5 mm²
Nexans ALSECURE FIL H07Z1-U 1X2.5 BE R100
Nexans ref. 10270112
- Packaging: Coil (100m)
- Sheath colour: Blue
- Conductor cross-section: 2.5 mm²
Nexans ALSECURE FIL H07Z1-U 1x2.5 BR R100
Nexans ref. 10272940
- Packaging: Coil (100m)
- Sheath colour: Brown
- Conductor cross-section: 2.5 mm²
Nexans ALSECURE FIL H07Z1-U 1G2.5 VJ R100
Nexans ref. 10270111
- Packaging: Coil (100m)
- Sheath colour: Green / Yellow
- Conductor cross-section: 2.5 mm²
Nexans ALSECURE FIL H07Z1-U 1x2.5 OR R100
Nexans ref. 10272941
- Packaging: Coil (100m)
- Sheath colour: Orange
- Conductor cross-section: 2.5 mm²
Nexans ALSECURE FIL H07Z1-U 1X2.5 RG R100
Nexans ref. 10270113
- Packaging: Coil (100m)
- Sheath colour: Red
- Conductor cross-section: 2.5 mm²
Description
Description
Standards
-
ProductEN 50525-3-31
Application
- Halogenfree insulated conductors for fixed installations
- For domestic and industrial applications as well as for panel wiring
Design
- Copper core, solid (U) or stranded (R)
- Halogen free insulating sheath (SA and SD according to art.104 of the RGIE/AREI) with F2 characteristic
Installation
- In industries
- In houses
- Open-air laying : with protection
- Ground laying : with protection
- Type 2 = fire retardant according to IEC 60332-3-24 and F2 according NBN C30-004.
- Other colours available upon request
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Conductor flexibility
Solid class 1
Insulation
Halogen-free
Halogen free
NBN C30-004 ST,SD,SA
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Usage characteristics
Usage characteristics
Field of application
Indoor
Flame retardant
NBN C30-004-F1
Fire retardant
NBN C 30-004-F2
Operating temperature, range
-5 ... 60 °C
Resistance to vibrations
Moderate
Resources
Resources
Documentation
PEP ECOPASSPORT H07Z1-U
pdf — 5.3 MB
CCM H07Z1-U
pdf — 252.6 kB
Selling & delivery Information
- Type 2 = fire retardant according to IEC 60332-3-24 and F2 according NBN C30-004.
- Other colours available upon request
