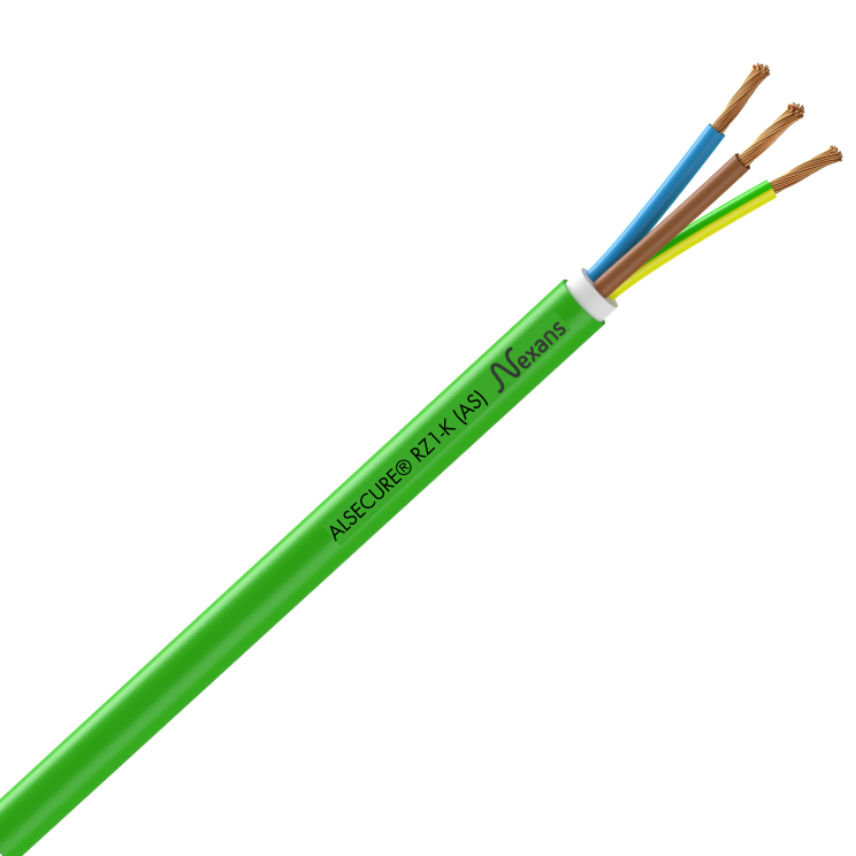

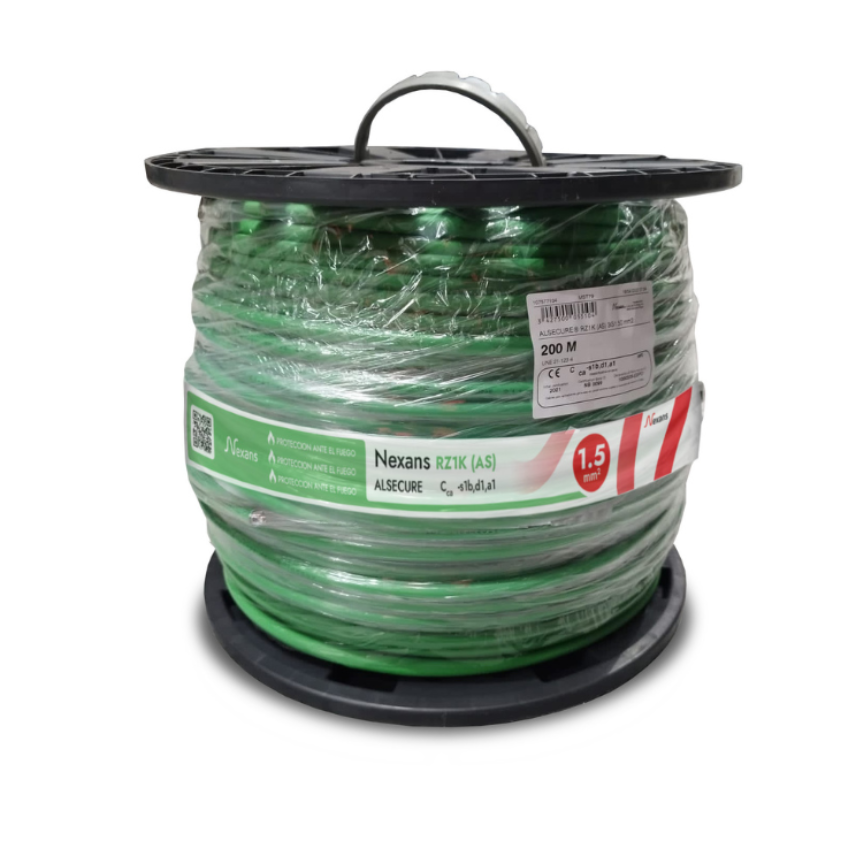

ALSECURE® RZ1-K (AS) MOBIWAY 3G1.5 D200
ALSECURE® RZ1-K (AS) MOBIWAY 3G1.5 D200
ALSECURE 1KV
Read more- Nexans ref. : 10279405
- Country ref. : 102-336
- EAN : 3427500033104
Description
Description
Standards
-
ProductIEC 60502; UNE 21123
-
TestEN 50265-2-1; EN 50267-2-2; EN 50268; IEC 60332-1; IEC 60332-3 Cat.C; IEC 60754-1; IEC 60754-2; IEC 61034
Application
RZ1-K Cable NON PROPAGATOR OF FIRE.
Installation in local of difficult ventilation, publics, evacuation itineraries, tunnels...
Almost null toxicity. Provoked gases when burning almost transparent, facilitating evacuation.
Core colours
- 1 core = Black
- 2 cores = Brown + Light blue
- 3 cores = Brown + Black + Grey or Brown + Light blue + Green-Yellow
- 4 cores = Brown + Black + Grey + Light blue or Green-Yellow
- 5 cores = Brown + Black + Grey + Light blue + Black or Green-Yellow
Marking
ALSECURE ® Nexans RZ1 - K(AS) -0,6/1 KV - N (x or G) S mm² - Fab.Year- AENOR
- N = number of cores
- S = section in mm²
- G = with Green-Yellow
- x = without Green-Yellow
MOB
ALSECURE - Protección ante el fuego

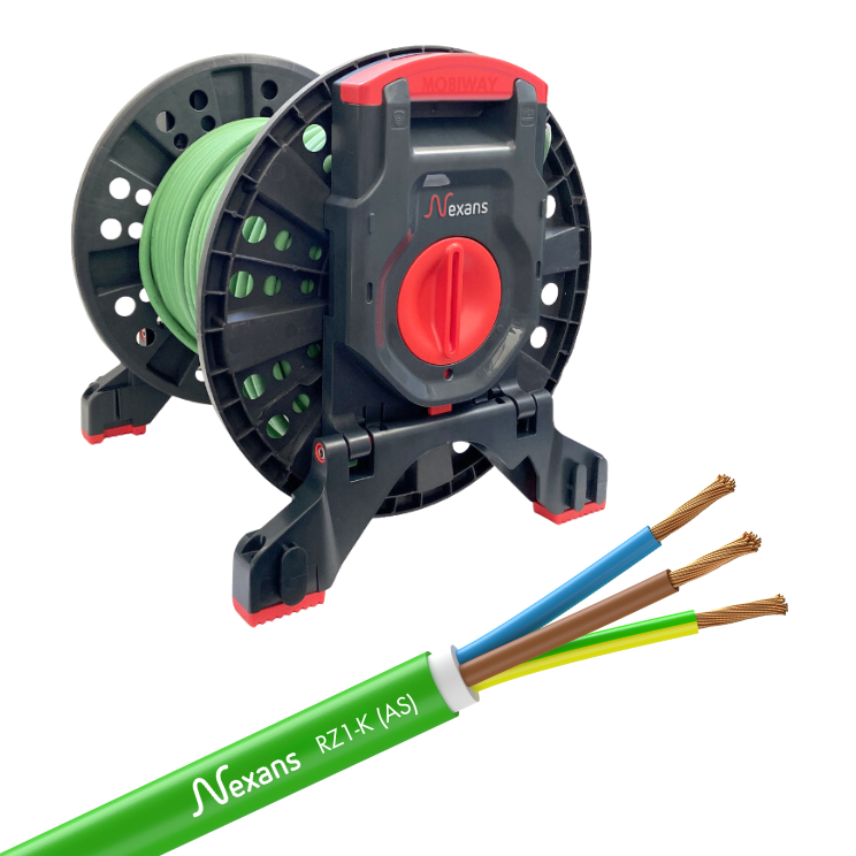

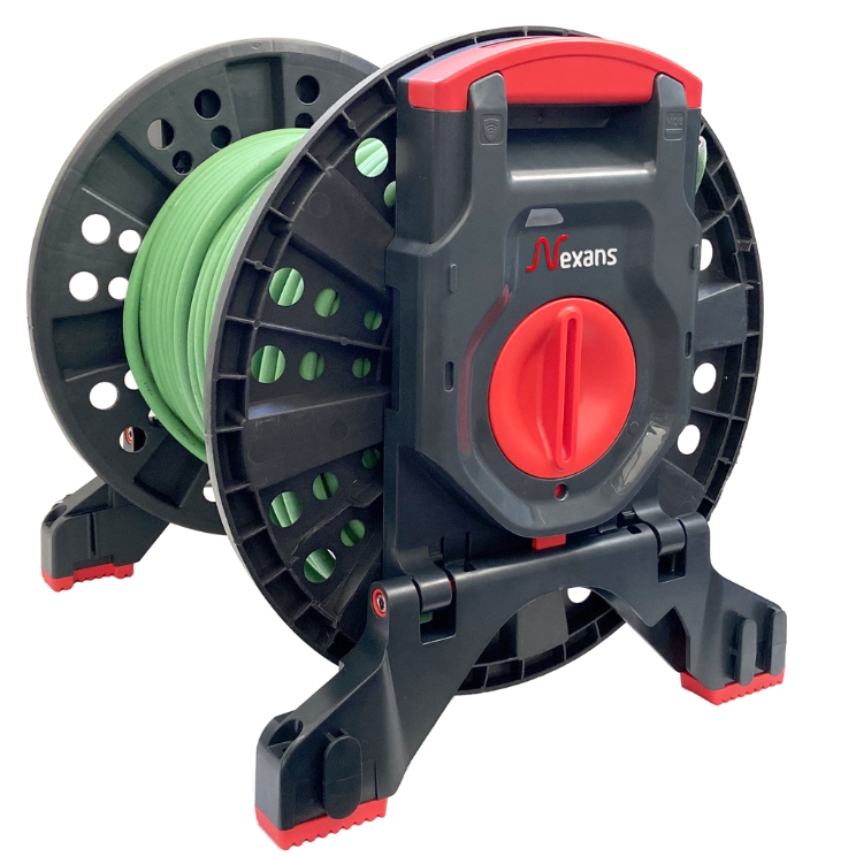

Gama compatible con MOBIWAY
PHOTO AMBIANCE 1
PHOTO AMBIANCE 2
Photo Ambiance
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Electrolytic copper
Sheath colour
Green
Outer sheath
Polyolefin
Insulation
Extruded XLPE compound
Conductor flexibility
Flexible class 5
Conductor shape
Circular
Halogen free
IEC 60754-1
Lead free
Yes
With Green/Yellow core
Yes
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Conductor cross-section
1.5 mm²
Approximate weight
170 kg/km
Neutral conductor section (when smaller)
- mm²
Outer Diameter
13.5 mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Max. DC resistance of the conductor at 20°C
- Ohm/km
Permissible current rating in open air
23 A
Permissible current rating when buried
20 A
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Fire retardant
IEC 60332-3-24 (cat C)
Flame retardant
-
Gases corrosivity
IEC 60754-2
Packaging
-
Smoke density
IEC 61034
Weather resistance
Good
Resources
Resources
Documentation
PEP ECOPASSPORT RZ1-K 1.5 and 2.5 mm²
pdf — 4.4 MB
BROCHURE MOBIWAY MOB
pdf — 3.8 MB
PEP ECOPASSPORT RZ1-K MULTI
pdf — 5.1 MB
PEP ECOPASSPORT RZ1-K MONO
pdf — 5.1 MB
Current capacity table XLPE insulation multicore three phase
| Conductor cross-section | A2 - Multi-core cable in conduit in a thermally insulated wall | B2 - Multi-core cable in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | E - Multi-core cable in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 16.5 | 0.0 | 19.5 | 0.0 | 22.0 | 0.0 | 25.0 | 0.0 | 23.0 | 0.0 | 26.0 | 0.0 |
Current capacity table XLPE insulation single core three phase
| Conductor cross-section | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | Ft - Single-core trefoil cables, touching in free air | G - Single-core horizontal spaced | Gv - Single-core flat vertical spaced | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 17.0 | 0.0 | 20.0 | 0.0 | 22.0 | 0.0 | 21.0 | 0.0 | 23.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
Current capacity table XLPE insulation single core single phase
| Conductor cross-section | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 19.0 | 0.0 | 23.0 | 0.0 | 24.0 | 0.0 | 25.0 | 0.0 | 27.0 | 0.0 | 0.0 | 0.0 |
Current capacity table XLPE insulation multicore single phase
| Conductor cross-section | A2 - Multi-core cable in conduit in a thermally insulated wall | B2 - Multi-core cable in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | E - Multi-core cable in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 18.5 | 0.0 | 22.0 | 0.0 | 24.0 | 0.0 | 25.0 | 0.0 | 27.0 | 0.0 | 26.0 | 0.0 |
Declaration of Performance
- Declaration of Performance n� : 1000335-ESPO
- Certification Date : 9/16/21
- AVCP (Assessment and Verification of Constancy of Performance) : System 1+
- Notified body : NB 0099
- Declared performance : Cca-s1b,d1,a1
