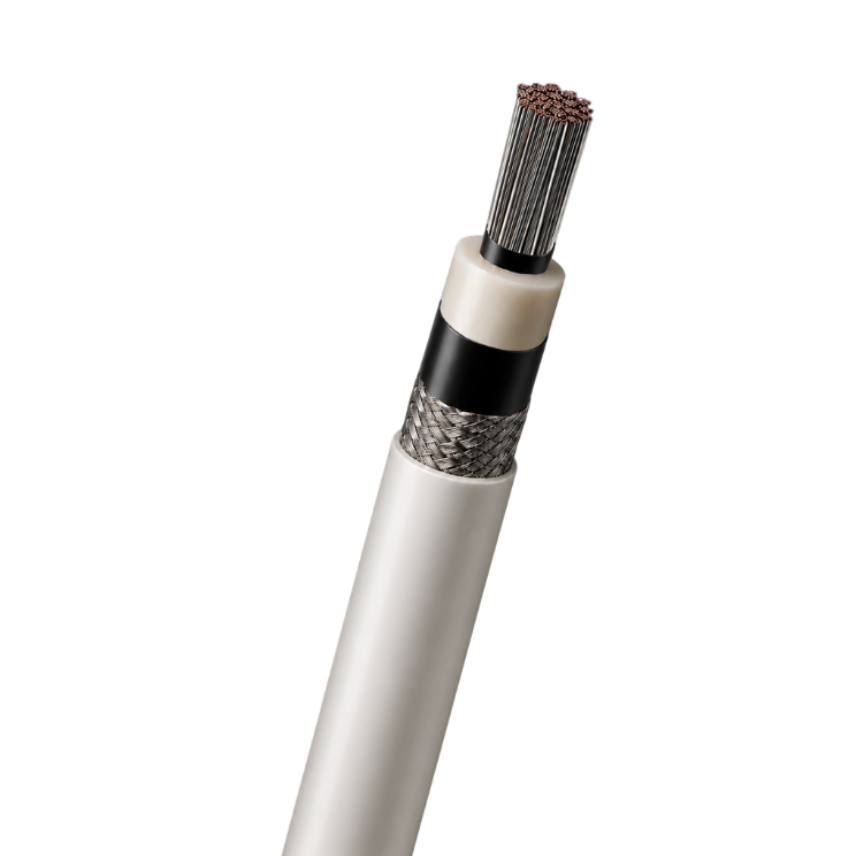

Nexans SIWO-KUL® S30 6.6 / 7.2 kV
Nexans SIWO-KUL® S30 6.6 / 7.2 kV
SIWO-KUL® S30 6.6/7.2 kV cables are designed with a COPPER braid SCREEN to avoid EMC interference with SILICONE sheath
Read moreSIWO-KUL S30 1x4,0 6,6/7,2 kV GY
Nexans ref. 10549492
- Packaging: Cut to length (m)
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 14.1 mm
SIWO-KUL S30 1x6,0 6,6/7,2 kV GY
Nexans ref. 10549553
- Packaging: Cut to length (m)
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 14.5 mm
SIWO-KUL S30 1x16 6,6/7,2 kV GY
Nexans ref. 10558572
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 18.8 mm
SIWO-KUL S30 1x25 6,6/7,2 kV GY
Nexans ref. 60010407
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 20.6 mm
SIWO-KUL S30 1x35 6,6/7,2 kV GY
Nexans ref. 60010406
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 21.8 mm
SIWO-KUL S30 1x50 6,6/7,2 kV GY
Nexans ref. 10549303
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 24.6 mm
SIWO-KUL S30 1x70 6,6/7,2 kV GY
Nexans ref. 60500713
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 26.5 mm
SIWO-KUL S30 1x95 6,6/7,2 kV GY
Nexans ref. 60012494
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 28.2 mm
SIWO-KUL S30 1x120 6,6/7,2 kV GY
Nexans ref. 10549561
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 30.2 mm
SIWO-KUL S30 1x150 6,6/7,2 kV GY
Nexans ref. 10549562
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 34.4 mm
SIWO-KUL S30 1x185 6,6/7,2 kV GY
Nexans ref. 10549493
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 35.1 mm
SIWO-KUL S30 1x240 6,6/7,2 kV GY
Nexans ref. 60013303
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 37.4 mm
SIWO-KUL S30 1x300 6,6/7,2 kV GY
Nexans ref. 60500714
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 40.9 mm
Description
Description
Standards
-
ProductCSA C22.2 N° 210-05; IEC 60228
-
InstallationIEC 60092
-
TestIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Application
- Connection of rotating machines windings, like motors, alternators, generators.
- Cabling of static devices, like power converters, motor drives, power cabinets, transformers
- Adapted for wind turbines, marine and offshore, rollingstock, photovoltaic, energy storage systems
Construction
- Flexible tin-plated copper conductor class 5 as per IEC 60228, other class in optio
- High grade silicon rubber insulation
- Tin platted Cu braid for EMC protection screen
- Silicone outer sheath
- Inner and outer co-extruded semi-conductor reduces partial discharge and increases cable life
Properties
- Partial discharge < 10 pC
- Operating temperature in continuous mode -55°C to +180°C
- Resistance to thermal shocks
- Type approval certificate : Lloyds Register LR21139304TA
- Type approval certificate : BV Marine & Offshore 09555/D0 BV, file : ACE 01/723/01
- Certificate of compliance : CSA Standard C22.2 N°210-15, file : LL 36040 AWM
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Operating voltage
6.6 kV
Usage characteristics
Usage characteristics
Operating temperature, range
-55 ... 180 °C
Chemical resistance
Good
Oil resistance
Yes
Flame retardant
IEC 60332-1
Fire retardant
IEC 60332-3
Fire resistant
IEC 60331
Gases corrosivity
IEC 60754-1; IEC 60754-2
Smoke density
IEC 61034
